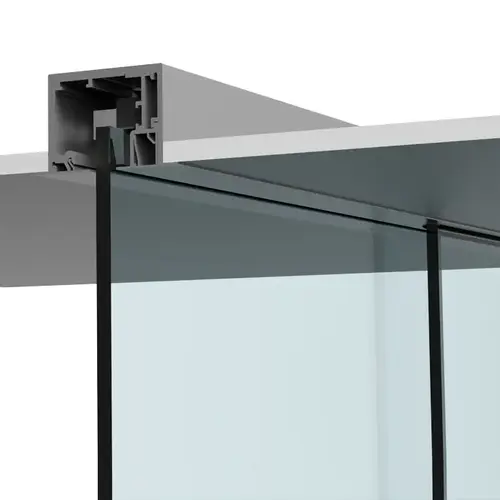

CRL CRL6901D 690 Series Satin Anodized Drop Ceiling Mount Sliding Door with Fixed Panel Kit

Item #: CRL6901D by CR Laurence

See reviewsSee reviews
In Stock

$1,560.06

/each
SAVE UP TO 156.01

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote
Custom Configuration

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
  • Can Accommodate Properly Installed Doors Weight Up to 330 Pounds (150 kg)
  • Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
  • Track Length is 118" (3 m)
  • Use Monolithic Tempered Glass

Finish

Satin Anodized

Track Length

118 in. (2997 mm)

Glazing Thickness

3/8 To 1/2 in. (10 To 12 mm)

Finish/Color

Satin Anodized

Product Overview

CRL 690 Series Sliding Door Kitsare available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact DK Hardware Sales for Commercial Products for kit selection or installation assistance.


Minimum sliding panel width of 23-5/8" (600 mm). Existing CRL690 Series installations can be easily upgraded to CRL695 Series by ordering CRL695SBK Softbrake kits, minimum door panel width 34-1/4" (870 mm).
Kit Contains:
  • 118" (3m) of CRL4930EXT Track kit
  • 1 Set CRL6939 Top Hangers
  • 1 Set CRL6942 Roller Stops
  • 1 Set CRL4937 End Caps
  • 1 Set CRL2945 Door Edge Guards
  • 1 Set CRL290TF Top Track Insert Fasteners
  • 1 Each CRL Bottom Guide

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
