Features
Finish
Satin Stainless Steel
Color Code
630/US32D
Fire Rated
3 Hours {A}
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Stainless Steel
Grade
ANSI/BHMA Grade 1
Function
Stop Only
Finish Description
Satin Stainless Steel
Product Type
Door Closer/Holder/Stop
Series
6 Series
For Door Thickness
1-3/4 Inch
Product Size
3
Hold Open-Stop Range
110°
Manufacturer Parent
Assa Abloy
For Use With
Interior or Exterior Doors
Sub-Series
6ADJ-336-630
ADA Compliant
No
Mounting Type
Concealed
Application
Interior or Exterior Doors; Single or Double Acting Door
Door Opening
33-1/16" to 38" (Butt/Offset Pivots), 36-1/16" to 41" (Center Hung)
Jamb Bracket Length
3-1/2 Inch
Function Family
Overhead Door Stop
Mount
Concealed
Standards
ANSI/BHMA A156.8 Grade 1; UL Listed
Door Size
33-1/16 Inch to 41 Inch
Features
Slide Track Design; Recommended for High Traffic Heavy Abuse Situations; Durable Slider Cam and Shock Block; Adjustable Jamb Bracket
Jamb Bracket Height
1 Inch
Jamb Bracket Width
1/4 Inch
Finish Family
Stainless Steel
ANSI/BHMA Standards
Certain Models ANSI/BHMA A156.8, Grade 1 Certified
Door Swing
Single or Double Acting
Door Handing
Non-Handed
Mounting Method
Concealed
Fasteners
Torx Screws Optional
Duty Level
Medium Duty
Torx - Security Screws
Yes
Product Overview

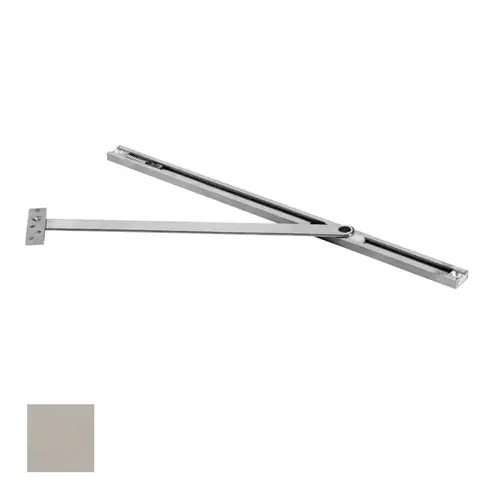

Concealed Adjustable Low Profile Stop, Satin Stainless Steel
Low Profile Concealed Adjustable door stop. For single or double acting, interior or exterior doors. low profile concealed channel design for installation in aluminum doors.
