7 Pin Maintained Single Switch 2 O'clock Electric Switch Lock Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

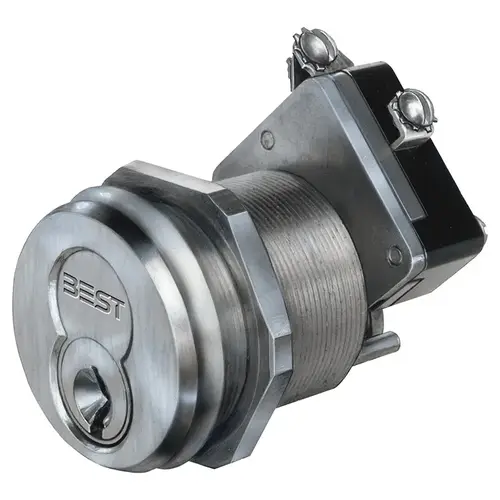

Stanley Best 1W7B1626 7 Pin Maintained Single Switch 2 O'clock Electric Switch Lock Satin Chrome Finish

Item #: 1W7B1626 by BEST

Brand: Stanley Best

See reviewsSee reviews
See reviews summary
In Stock

$216.57

221.00 /each
SAVE UP TO 21.66
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 22 units available

Finish: Satin Chrome

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • For Use On Electrical Controls, Machines, Electrical Panels, Etc.
  • Designed To Accept Best 7-Pin Interchangeable Cores
  • May Be Keyed Into Any Best Masterkey System
  • All Best Switch Locks Are Ul Recognized Or Listed.
  • Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock

Finish

Satin Chrome

Color Code

626/US26D

Relay Type

SPDT

Color

Satin Chrome

Origin

USA

Dimension

1-5/32" x 31/32" Front; 2-11/32" Length

Hazardous Material

No

Duty Level

Heavy Duty

Electronic

Yes

Keyed

Yes

Box

None

Grade

Grade 1

Product Overview

BEST KEY SWITCHES LOCKS

BEST offers a line of electric high security key switch locks available in various on-off" and momentary" keyed switch functions. Circuitry variations are available in single, double and triple pole with varied voltage and amperage ratings. Units may be keyed into any BEST system. The BEST interchangeable core offers versatility and adaptability for new and existing electrical controls, panels, machines, etc.

FEATURES

  • Double D lock cylinder prevents slipping and turning
  • Screw terminals on all switch locks (except the 1W7A1) provides ease of installation
  • All switches are UL recognized or listed

1W7B1 SPECIFICATIONS

  • Horsepower rating 125 250 VAC, 1/2 HP
  • Operating temperature up to +176 degreeF (+80 degreeC)
  • Switch type SPDT (Single pole-double throw)
  • Switch lock action Maintained
  • Number of switches per assembly One
  • Contact rating
    • 30 VDC, 15 amps, resistive
    • 125 VDC, 0.6 amps, resistive
    • 250 VDC, 0.3 amps, resistive
    • 125 VAC, 15 amps, resistive
    • 25 VAC, 5 amps, lamp
    • 250 VAC, 15 amps, resistive
