CRL's 700A Series Door Louvers have a two-piece design for wood or metal doors with a minimum thickness of 1-3/8" (35 mm). Constructed from 18 gauge CRS, 700A Series Louvers have a minimum frame size of 6" x 4" (152 x 102 mm) and a maximum size of 48" x 80" (1.22 x 2.03 m). The two rows of inverted 'Y' blades are spaced at 1" (25 mm) intervals and attached by interlocking construction to the 3/4" (19 mm) deep welded frame that is screwed into the door on both sides. Custom sizes and finishes are also available.
CRL 700A Series Door Louvers can have a variety of screen wires placed underneath of either panel to prevent unwanted pests from entering through the Louvers. Common 18 x 16 mesh aluminum screen wire is recommended to keep out small insects. These are available only on special order.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

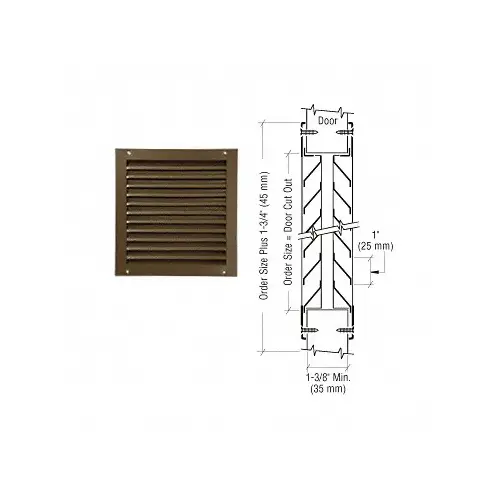

CRL 700A12X12 700A Series 12" x 12" Door Louver Bronze
Item #: 700A12X12 by CR Laurence
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 50% Free Flow Area
- Bronze Powder Coat Finish
- Non-Vision Inverted Split 'Y' Blades
Free Flow Area
72 Square Inches
Size
12" x 12" (305 x 305 mm)
Size W x H
12" x 12" (305 x 305 mm)
Height
12
Finish
Bronze
Material
18 Gauge CRS
Width
12
For Door Thickness
Minimum 1 3/8"
Finish/Color
Bronze
Series
700A Series Door Louvers
Blade Space
1"
Blade Space
1 in. (25.4 mm)
Product Overview
CRL's 700A Series Door Louvers have a two-piece design for wood or metal doors with a minimum thickness of 1-3/8" (35 mm). Constructed from 18 gauge CRS, 700A Series Louvers have a minimum frame size of 6" x 4" (152 x 102 mm) and a maximum size of 48" x 80" (1.22 x 2.03 m). The two rows of inverted 'Y' blades are spaced at 1" (25 mm) intervals and attached by interlocking construction to the 3/4" (19 mm) deep welded frame that is screwed into the door on both sides. Custom sizes and finishes are also available.
CRL 700A Series Door Louvers can have a variety of screen wires placed underneath of either panel to prevent unwanted pests from entering through the Louvers. Common 18 x 16 mesh aluminum screen wire is recommended to keep out small insects. These are available only on special order.
