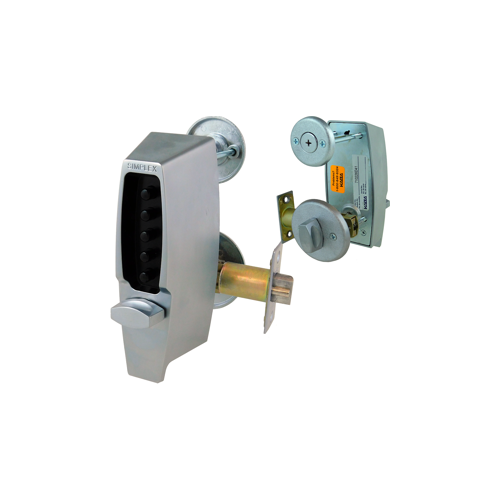

Kaba Access 7104-26D-41 7100 Series Auxiliary Pushbutton Lock, Satin Chrome
Item #: 7104-26D-41 by Kaba Access
In Stock $185.50 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Construction: All metal cast front housing; force-resistant, clutch-protected exterior thumbturn
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Field reversible
- Door Thickness: 1⅜" (35 mm) to 2¼" (57 mm), wood or metal
- Durability: Weather resistant
- Warranty: 1-year warranty
- Backset: 2¾" (70 mm) or 2⅜" (60 mm) backset
Color
Satin Chrome
Package Qty
1
Color Code
626/US26D
Lock Platform
Cylindrical Lock
Base Material
Brass or Bronze
Finish
Satin Chrome
Finish Description
Satin Chrome
Function
4 - 1/2 Inch Deadlocking Latch
Product Type
Push Button Lock
ADA Approved
False
Application
Commercial; Residential; Industrial; Healthcare; Education; Military and Government; Utilities
Hand
Reversible
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Handing
Reversible
Warranty
1 Year
Handle Type
Thumbturn
Door Thickness
1-3/8" to 2-1/4"
Latch Throw
1/2 Inch
ADA Compliant
No
Finish Family
Satin Chrome
Included Components
Installation Manual; Full-Scale Template; Required Installation Hardware
Lever Style
Thumbturn
Product Material
Metal Cast
Locking Device
Deadlocking
Function Family
Pushbutton Lock
Minimum Stile Width
4 Inch
Faceplate Type
Flat Front
Features
Vandal Resistant; Solid Metal Pushbuttons; Durability; Weather Resistant; No Battery
Manufacturer Parent
DormaKaba
Programming Method
Keypad
Number of Access Codes
1
Lock Dimensions
6-1/2" x 2-1/2"
Sub-Series
CL_Push_Button_Locks_kaba_access_29
Options
Curved Lip Stripe
Access Type
Mechanical
Alternate Part Number-1
119513
Lock Category
Deadbolt
Proximity Format
Pushbutton Combination
Knob/Lever Style
Thumbturn
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking latch models automatically relock each time the door closes. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
