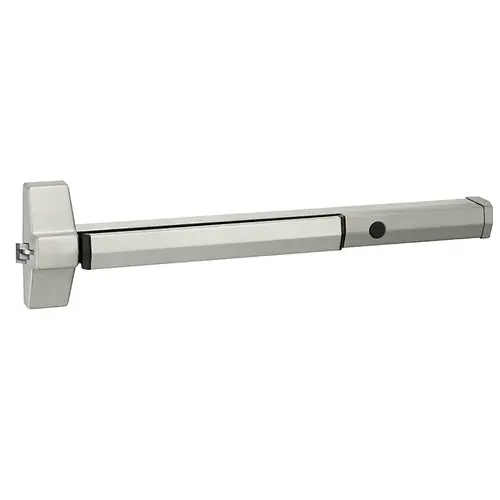

Yale Commercial 7155 48 630 7150 Rim Squarebolt Exit Device, Satin Stainless Steel

Item #: 7155 48 630 by Yale

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$1,091.53

/each
SAVE UP TO 109.15
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • touchbar monitor “B” Provides indication of the pushpad being depressed. Used as a Request to Exit switch to shunt alarm systems, release electromagnetic locks or monitor egress.
  • Electrical Specifications: 4 Amps @ 250VAC contacts
  • Listings: UL/cUL listed for panic and fire exit hardware.
  • Applications: Rim: 7100(F), 7200, 7200M(F) SquareBolt®: 7150(F), 7250, 7250M(F) SVR: 7110(F), 7170(F), 7210, 7210M(F) CVR: 7120(F), 7160(F), 7220, 7220M(F) Mortise: 7130(F)
  • Ordering: Suffix “B” to the Model

Color

Satin Stainless Steel

Physical Appearance

Wide Stile Pushpad

Fire Rated

No

Device Type

Rim SquareBolt

Mechanical Options

Square Bolt Device

Device Length

48 Inch (4 Foot)

Color Code

630/US32D

Dogging Options

Cylinder Dogging

Finish

Satin Stainless Steel

Handing

Non-Handed

Finish Description

Satin Stainless Steel

Stile

Wide Stile

Function

Exit Only

Product Type

Exit Device

Series

7150 Pushpad

Length

4

Application

Single Swing Doors; Pairs of Doors With Removable Mullions

Bolt Throw

3/4 Inch

Latch Type

Deadlocking Pullman-Type

ADA Compliant

No

Finish Family

Stainless Steel

Standards

ANSI/BHMA A156.3 Type 1, Grade 1; UL/cUL Listed

Stile Width

4-1/2 Inch

Device Bar Projection

Active: 3-1/4 Inch; Depressed: 2-3/4 Inch

Device Rating

Panic Exit Hardware

For Door Thickness

1-3/4 Inch

Chassis Material

Steel

Function Family

Exit Only Device

Features

For Wide Stile Doors; Electroplated Ferrous Components Provide Corrosion Resistance; Heavy-Duty; 5 yr Limited Warranty; Durable; Flexibility

Door Material

Metal; Wood or Composite

Manufacturer Parent

Assa Abloy

Sub-Series

7155-48-630

Product Overview
7150 SeriesRim SquareBolt®

Just as easy to open as traditional latchbolts, the SquareBolt® exit device's unique construction offers innovative protection. Its patented SquareBolt (Pat. no. 5,605,362) design presents an improved physical barrier over standard rim latchbolts. The SquareBolt exit device locks into place and stays there. Credit cards, crowbars, door rattling and shaking are resisted, significantly reducing the threat of unauthorized entry.

Features:
  • Patented SquareBolt security deadbolt (Pat. no. 5,605,362) designed for maximum holding power
  • Non-handed for easy installation
  • Can be retrofitted onto existing 7100 series templated doors
  • Fully adjustable surface-mounted 3/8" diameter roller strike complete with positive locking plate and shims
  • Available in double cylinder function (handing must be specified)
  • Available certified hurricane resistant (refer to local codes). Specify 7150(F)WS
Applications:
  • Single swing doors
  • Pairs of doors with removable mullions
  • Metal, wood or composite door materials
Specifications: Door Opening Width:
  • 24 for 24" (60cm) doors
  • 36 for 30" - 36" (76cm - 91cm) doors
  • 48 for 36" - 48" (91cm - 122cm) doors
Door Thickness:
  • 1-3/4" (44mm) standard. Optional door thicknesses available to 4-1/2"; specify door thickness when ordering.
Minimum Stile Width:
  • 4-1/2" (114mm)
Projection:
  • 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
Deadbolt:
  • Patented 1" (25mm) slide projection bolt with full 3/4" (19mm) projection
Strike:
  • 757F
Fasteners:
  • Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
Trims:
  • 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim, 121NL cylinder only.
ANSI/BHMA:
  • A156.3, Type 4 or 28, Grade 1
UL/cUL:
  • FVSR/FVSR7 - Panic hardware
  • GXHX/GXHX7 - Fire exit hardware (F)
  • (4' x 8' single, 8' x 8' pairs, 3 hr.)
  • ZHEM - Latching hardware
  • ZHLA - Windstorm rated assemblies
Dogging:
  • Hex key dogging supplied standard on panic devices
Warranty:
  • 5-year limited
Finishes: 605:
  • Bright Brass, Clear Coated
606:
  • Satin Brass, Blackened, Satin Relieved, Clear Coated
611:
  • Bright Bronze, Clear Coated
612:
  • Satin Bronze, Clear Coated
613E:
  • Dark Oxidized Satin Bronze - equivalent
616:
  • Blackened, and Satin Relieved, Clear Coated
619:
  • Satin Nickel Plated, Clear Coated
620:
  • Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated
629:
  • Bright Stainless Steel
630*:
  • Satin Stainless Steel
693:
  • Black Painted
BSP:
  • Black Suede Powder Coat
WSP:
  • White Suede Powder Coat
  • 613, 626 and 722 finishes available as Special Product Requests only. Please contact Customer Service for more information
  • *Finish available with MicroShield® antimicrobial coating, additional finishes by special application. Consult factory for availability.
  • MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
