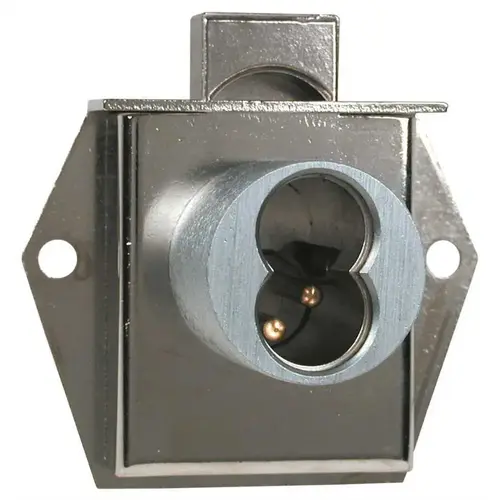

OLYMPUS LOCK 725MD-DW-VH-US26D SFIC Mortise Deadbolt, Drawer Vertical, Less Core, Satin Chrome
Item #: 725MD-DW-VH-US26D by Olympus Corporation
Brand: OLYMPUS LOCK
UPC #: 400654009655
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Builders Hardware Product Type
Cabinet Door Lock
Dimensions
1-5/8" x 1-15/16"
Finish
Satin Chrome
General Material
Metal
Hardware Finish Family
Chrome
Manufacturer Warranty
1 Year
Package Quantity
1
Product Depth (in.)
1.5
Product Height (in.)
2.325
Product Width (in.)
2.625
Warranty
1 Year
UNSPSC
46171500
Mounting Type
Mortise
Application
Drawer
Hand
Vertical
Handing
Vertical
Function
Door Lock
Bolt Throw
1/2 Inch
Cylinder Type
Less Cylinder
Finish Description
Satin Chrome
Included Components
725-1 Spacer to Fit 6 or 7 Pin Cores; 725-SP-MD Slotted Rectangular Strike; 725-PA Plastic Thumb turn
Mounting Hole Diameter
3/16"
Product Material
Zinc Die Cast; Steel
Bolt Type
Dead Bolt
Standards
ANSI/BHMA A156.11 Grade 1
Mounting Hole Center To Center
2-3/16"
Features
Accepts Best, Arrow, Falcon or Equivalent Small Format Interchangeable Core Cylinders
Product Type
Cabinet Hardware
Series
Cabinet Lock
Color Code
626/US26D
Finish Family
Satin Chrome
Function Family
Cabinet/Drawer Hardware
Manufacturer Parent
Olympus Lock
Sub-Series
725MD-DW-VH-26D
Product Overview
The Olympus Lock 725MD-DW-VH-US26D is a mortise-mounted deadbolt lock designed for vertical-handed drawer and cabinet applications. This lock is configured to accept a Small Format Interchangeable Core (SFIC) from manufacturers such as Best, Arrow, or Falcon, supporting both 6 and 7-pin core types. The interchangeable core mechanism allows for quick rekeying without disassembling the lock body; the core itself is not included. Constructed with a zinc die-cast body, steel back plate, and steel case, it features a 1-1/8-inch barrel diameter and a 1-1/16-inch barrel length. It comes in a Satin Chrome (US26D/626) finish. This deadbolt meets ANSI/BHMA A156.11 Grade 1 performance requirements and is designed to retrofit Best 5L series cabinet locks.
