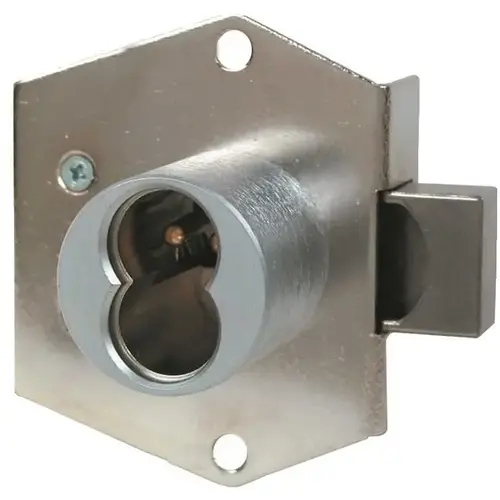

OLYMPUS LOCK 725RD-DR-RH 26D IC Core Rim Deadbolt, Right Handed, Less Cylinder, Satin Chrome
Item #: 725RD-DR-RH 26D by Olympus Corporation
Brand: OLYMPUS LOCK
UPC #: 400654009662
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Builders Hardware Product Type
Cabinet Door Lock
Dimensions
2-3/16" x 2"
Finish
Satin Chrome
General Material
Metal
Hardware Finish Family
Chrome
Manufacturer Warranty
1 Year
Package Quantity
1
Product Depth (in.)
1.5
Product Height (in.)
2.325
Product Width (in.)
2.625
Warranty
1 Year
UNSPSC
46171500
Application
Cabinet Deadbolt Doors
Hand
Right Hand
Handing
RH
Function
Door Lock
Bolt Throw
1/2"
Finish Description
Satin Chrome
Included Components
725-1 Spacer to Fit 6 or 7 Pin Cores Matching Strike; 725-PA Plastic Thumbturn; Through-Bolt Plates and Screws
Mounting Hole Diameter
3/16"
Product Material
Housing: Zinc Die Cast; Back Plate: Steel; Case: Steel
Bolt Type
Dead Bolt
Standards
ANSI/BHMA A156.11 Grade 1
Key Retaining
No
Mounting Plate Thickness
1/16 Inch
Features
Deadbolt Locking Mechanism; Retrofits Best 5L Series Cabinet Locks; Accepts Best, Arrow or Equivalent Small Format Interchangeable Core Cylinders
Product Type
Cabinet Hardware
Series
Cabinet Lock
Finish Family
Satin Chrome
Color Code
626/US26D
Function Family
Cabinet/Drawer Hardware
Manufacturer Parent
Olympus Lock
Sub-Series
725RD-DR-RH-26D
Alternate Part Number-1
231114
Product Overview
The Olympus Lock 725RD-DR-RH-26D is a surface-mounted rim deadbolt designed for cabinet and enclosure security. It features a deadbolt locking mechanism and accepts a small format interchangeable core (SFIC), specifically 6-pin and 7-pin cylinders, which are sold separately. This right-handed lock is finished in satin chrome (US26D/BHMA 626), a brushed chrome plating over steel or base metal. It has a barrel diameter of 1-1/8 inches and a standard barrel length of 1-1/16 inches. The lock is compatible with Best, Arrow, Falcon, KSP, Schlage SFIC, or equivalent cores. It meets ANSI/BHMA A156.11 Grade 1 performance requirements. Included accessories are a 725-1 spacer for 6-pin cores, a 725-PA plastic actuator, and a 725-SP-RD solid rectangular strike.
