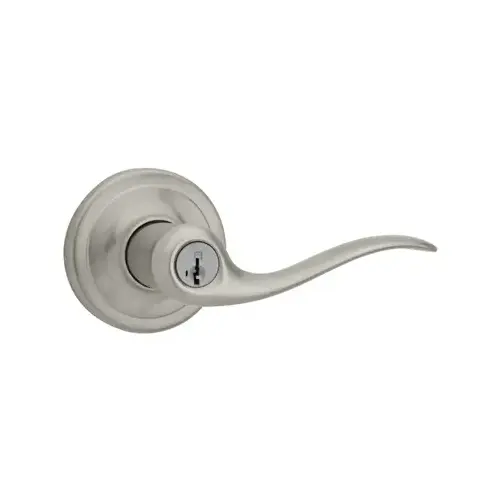

Kwikset 740TNL 15 SMT 6AL RCS Tustin Satin Nickel Entry Door Lever Featuring SmartKey Security
Item #: 740TNL 15 SMT 6AL RCS by Kwikset
UPC #: 883351102339
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Nickel
Style
Traditional
Warranty
Lifetime Finish and Mechanical Warranty
ADA Compliant
No
Assembled Depth (in.)
2.093
Assembled Height (in.)
2.625
Assembled Width (in.)
4.21875
Backset size (in.)
Adjustable
Certifications and Listings
No Certifications or Listings
Door Handing
Universal/Reversible
General Material
Metal
Hardware Finish Family
Nickel
Housing Width (in.)
2.625
Security/ANSI Grade
ANSI Grade 2 (Better)
Strike width (in.)
1.0
Lock Type
Keyed Entry
Pack Size
1
Door Locks & Knobs Product Type
Keyed Levers
UNSPSC
46171500
Projection
2.5900
Grade
ANSI/BHMA Grade 2
Lever Length
4.2200
Backset
2-3/8 Inch or 2-3/4 Inch
Keyway
Kwikset KW1
Function
740-Entry
Door Thickness
1-3/8" to 1-3/4"
Strike
RCS-Round Corner Strike
Bore Size
2.1250
Cylinder Type
SMT SmartKey
Finish Description
Satin Nickel
Product Height
2-19/32 Inches
Product Length
4-7/32 Inches
Included Components
Keyed entry levers, roses, latch, strike, mounting hardware
Lever Style
TNL-Tustin
Keyblank Grouping
KWIK-KW1-5-1
Rose/Escutcheon Trim
Round Rose
Keying Charges
Residential-Conventional
Product Material
Zinc
Product Type
Cylindrical Lock
Series
Signature Series
Box Length
6.6300
Box Width
5.7500
Box Height
3.0000
Color Code
619/US15
Bolt Throw
1/2 Inch
Application
Keyed Entry; Security is Needed
Latch Type
6-Way Adjustable
Strike Type
Round Corner Strike
Finish Family
Satin Nickel
Standards
ANSI/BHMA grade 2 certified
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 1"
Function Description
Both sides locked or unlocked by key outside or push button inside
Function Family
Entry/Entrance/Office
Product Projection
2-19/32 Inch
Features
SmartKey Security; Interchangable Faceplate; Fully Reversible Lever; Easy Installation; Antimicrobial
Strike Size
2-1/4 Inch
Door Cross Bore
2.125 Inch
Manufacturer Parent
Spectrum
Lever Length-Inches
4.219 Inch
Box Dimensions (L x W x H)
3x5.75x6.63
Sub-Series
RL_Lever_Locksets_kwikset_53
Height
3.00
Length
6.63
Width
5.75
Country Origin Code
TW
Hazardous Material
No
Nomenclature
740TNL15SMT6ALRCS TUSTIN LEVER
MADE IN THE USA
No
Security Grade
ANSI Grade 2
Package Quantity
1
UL Listed
No
Assembled Product Depth
2.09 in.
AbilityOne
No
Handle Type
Lever
Commercial/Residential
Residential
Keying
Keyed
Assembled Product Height
2.63 in.
Lockset Function
Entry
Assembled Product Width
2.63 in.
GSA Approved
No
TAA/BAA Compliant
No
Backset Size
2-3/8 in., 2-3/4 in.
Product Overview
Step up to designer styles and superior security with Kwikset Signature Series products. Tustin's fashionable wave silhouette design is the perfect complement to homes with inspired style. The crisp, clean appearance of the Satin Nickel finish adds to the overall look of the product and brings a modern feel. The lever can be locked or unlocked by key on the outside, or turn button on the inside. SmartKey Security Re-key Technology allows you to control who has access to your home. Re-key the lock yourself in seconds in 3 easy steps. Have you recently moved or had a child lose a key. It's time to re-key. SmartKey Security provides the highest level of residential security and features BumpGuard to protect against lock bumping.
- Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway
- Kwikset Signature series product
- For use on exterior doors where keyed entry and security is needed
- Fits door thickness of 1-3/8 in. to 1-3/4 in.
- Features an adjustable latch to fit all standard door preparations
- Fully reversible lever, fits both right-handed and left-handed doors
- Easily installs in minutes with just a screwdriver
- ANSI/BHMA grade 3 security
- Lifetime mechanical and finish warranty
