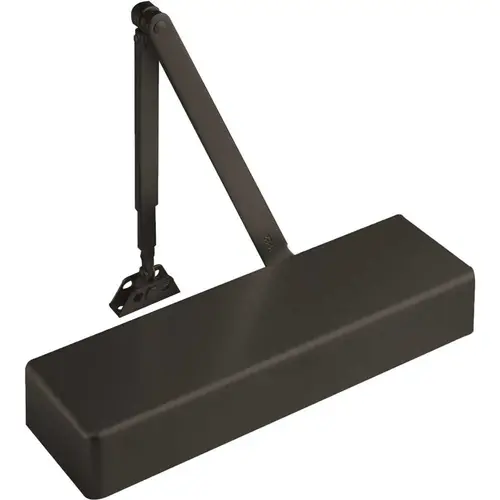

Norton 7500 693 7500 Series Surface Door Closer, Black Painted
Item #: 7500 693 by Norton
UPC #: 840067681404
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy body.
- Heavy Duty Arms
- Non Handed for Easy Installation
- Closers shall be surface mounted and shall project no more that 2-3/16" (55mm) from the surface of the door.
- Closers shall be non-handed to permit installation on doors of either hand.
- Rack and Pinion Design
- Backcheck Positioning Valve
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Molded Plastic Cover
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have backcheck cushioning controlled by a hex key adjusted valve.
- Closers shall have backcheck position controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
- [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, brass or stainless steel material and all fasteners of stainless steel.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/–7-1/2% ) power adjustment.
- Environmental Product Declaration (EPD) certified
Back Check
Adjustable
Package Volume
333.59375
Color
Black Painted
Case Width
12.75"
Hand
Non-Handed
Grade
ANSI/BHMA Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Cover
Plastic
Type
Surface
Application
Classrooms; Offices; Main Entrance Doors; Hospitals; High Use High Abuse Doors
Case Length
15.75"
Package Qty
1
Package Height
3.5"
Case Height
7.75"
Mounting Location
Push or Pull Side
Package Width
6.25"
Case Volume
1556.296875
Color Code
693
Origin
USA
BAA Qualified
Yes
Mounting Style
Tri Mount
Base Material
VARIES
Package Length
15.25"
Cold Weather Fluid
Yes
Arm Type
Regular Arm
Closer Size
Adj. 1 to 6
Finish
Black Painted
Function
Tri-Packed Non-Hold Open Arm
Series
7500 Series
Finish Description
Black
Spring Size
1-6
Mount
Push or Pull Side
Product Type
Door Closer/Holder/Stop
UNSPSC
31162800
Product Height
3-7/8 Inch
Product Length
13-5/8 Inch
Product Width
2-1/8 Inch
ADA Compliant
YES
Finish Family
Black
Product Material
Cast Aluminum
Closer Cover
Plastic Cover
Standards
Grade 1 - ANSI/BHMA A156.4
Closer Arm Type
Regular Arm
Closer Clearance
1 Inch
Closer Fluid Temperature Range
Extremely High to as Low as -40°F
Closer Fluid
NorGlide
Closer Piston Diameter
1-1/2 Inch
Closer Pinion Diameter
5/8 Inch
Function Family
Non Hold Open Door Closer
Mounting Hole Size
2-3/8" x 6-3/4"
Templating
Full Size
Fastener Type
Self Drilling Screws
Features
Backcheck Positioning Valve; All Standard Arm Applications Allow Doors To Swing 180°
Mounting Type
Push or Pull Side
Handing
Non-Handed
Warranty
30 Year Limited Warranty
Door Thickness
1-3/4 inch
Minimum Hold-Open
85°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Maximum Hold-Open
110°
Sub-Series
DC_Surface Mounted Closers_norton_8
Door Size
32" to 54" (Interior); 30" to 48" (Exterior)
Maximum Door Opening
180°
Product Overview
7500 SeriesInstitutional Door Closer
The 7500 Series is a robust, multi-sized surface closer designed to deliver superior performance and long-term reliability. Ideal for interior or exterior doors in facilities that demand reliability, such as government, healthcare and educational institutions.
Features:- Tri-Style® packaging; tri-packed for regular, top jamb or parallel arm mounting
- Non-handed
- Rack-and-pinion design
- Cast aluminum body
- Adjustable spring sizes 1-6
- 2-1/8" (54mm) projection
- 1-1/2" (38mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Staked valves
- Retrofit plates
- NorGlide® fluid
- Molded plastic cover
- All standard arm applications allow doors to swing 180°, conditions permitting
- Self-drilling screws
- Full-size template
- Application specific mounting: Regular (S), Top Jamb (JS) or Parallel (P) mount
- Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™ and Unitrol®
- Slide Tracks: push or pull side mounting
- Exceeds 25 million cycles
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- Backcheck positioning
- Enhanced backcheck. Specify EBC suffix
- Delayed action with pressure relief valve
- Corrosion resistant model (non-hold open only): specify 7500SS
- Metal cover: specify M suffix
- Lead lined metal cover: specify MLL suffix
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- 7500 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
- This product is manufactured in an ISO 9001, ISO 14001 facility
- Door Closers for Low Opening Force Applications:
- Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
- An Environmental Product Declaration (EPD) documents the cradle-to-grave life cycle of a product and how it affects the environment. An important aspect of EPD® is to provide the basis of a fair comparison of products and services by its environmental performance. EPDs can reflect the continuous environmental improvement of products and services over time and are able to communicate and add up relevant environmental information along a product's supply chain.
- Norton 7500 door closers are UL certified for inswing and outswing single and pair (up to 8'0" x 8'0") door assemblies to ICC 500 for Storm Shelters. Additionally, the 7500 meets FEMA 361 guidelines. 7500 is part of a complete ASSA ABLOY tornado and hurricane shelter solutions utilizing Ceco StormPro 361, Curries StormPro 361, Fleming F5 doors and frames and McKinney SP hinges.
