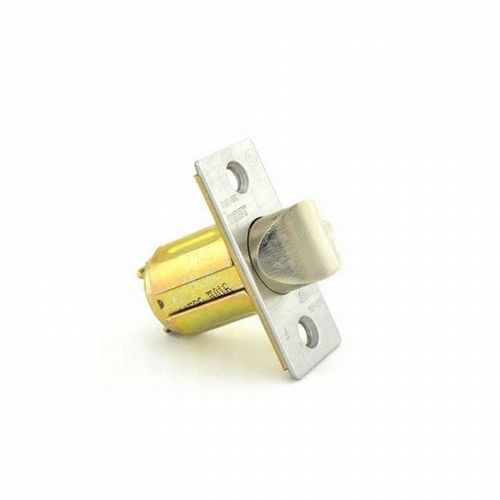

Stanley Best 7KCL2626 7K 2-3/8" Dead Latch Satin Chrome Finish
Item #: 7KCL2626 by BEST
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Offers Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.13 Grade 2
- Limited 3 Year Mechanical And Finish Warranty
Handing
Reversible
Finish
Satin Chrome
Backset
2-3/8" Backset
Color Code
626/US26D
Alternate Part Number-1
151679
Grade
ANSI/BHMA Grade 2
Application
Heavy Duty Residential Application; Standard Traffic Application
Hand
Reversible
Warranty
3 Year Mechanical; 3 Year Finish
Function
Deadlatch
Handle Type
Lever
Door Thickness
1-3/8" to 2"
Rose Diameter
3-1/2 Inch
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F75
Latch Type
Deadlocking Latch
Strike Number
S3
Strike Type
ANSI Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
1-1/4" x 4-7/8"
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2 Series-Grade 2; UL/cUL Listed; California State Fire Marshal (California Title 24)
Front Size
2 1/4" x 1" x 5/32"
Function Family
Part/Accessory
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Plated Zinc (Lever)
Features
Through-Bolt Mounting Studs Increase Torque Resistance; Quick Rekeying With Best Interchangeable Core; No Exposed Keeper Hole on Keyed Levers for Increased Security; Hub Torque Spring Provides Extra Resistance to Lever Sag; Snap-on Inside Rose
Product Type
Cylindrical Lock
Manufacturer Parent
DormaKaba
Lever Length-Inches
5.25 Inch
Knob/Lever Size
5-1/4 Inch
Lever Style Family
Straight Return Lever
Sub-Series
Best-7KCL2
7KC Series Part, 2-3/8" Deadlocking Latch, Satin Chrome
The 7KC Series has very versatile trims and has several finishes available too it your needs.
The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.
- Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
- Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
- Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
- Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
- Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
- Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
- Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
- Rose– D– 3 1/2" diameter mounting screws concealed.
- Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
- Door thickness– 1 3/8" to 2" .
NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
