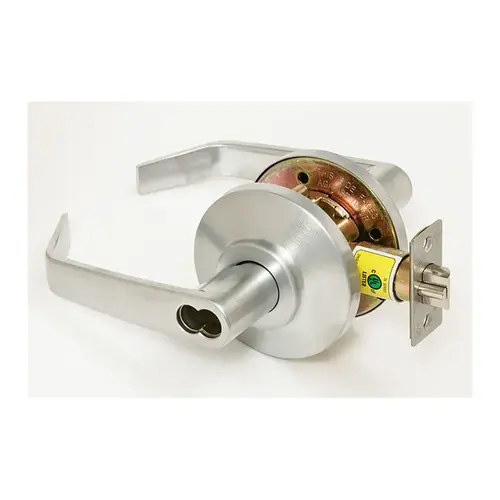

Stanley Best 7KC37AB15DSTK626 7K Series 2-3/4" Backset 7 Pin Entry 15 Lever and D Rose Standard Strike Less Core Satin Chrome Finish
Item #: 7KC37AB15DSTK626 by BEST
In Stock $349.65 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Cylindrical Chassis Fits Common Door Preparations
- Through-Bolt Mounting Studs Increase Torque Resistance
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 2
Handing
Reversible
Function
AB-Entry
Finish
Satin Chrome
Backset
2-3/4" Backset
Strike
Standard Strike
Design
15D
Cylinder Type
SFIC Prep Less Core
Fire Rated
3 Hours {A}
Package Height
4"
Package Length
8.25"
Package Volume
218.625
Package Width
6.625"
ADA Compliance
Yes
ANSI Function
F109 - Entry/Office
ANSI Number
F109
Bolt Protection
1/2 In.
Case Height
8.75"
Case Volume
2242.1875
Case Width
12.5"
Design A
15
Design B
D
Dust Box
Plastic
Latch Backset Dim
2-3/4 In.
Latch Type
Guarded Latch
Lever/Knob Design
15 - Lever
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Rose/Escutcheon Design
D - Rose
Screws
Combination
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height
2-3/4 In.
Strike Type
T - Standard
Strike Width
1-1/8 In.
Base Material
Brass or Bronze
Grade
Grade 2
Thickness
1-3/8 In. - 2 In.
Hand
Field Reversible
Color
Satin Chromium Plated
Color Code
626/US26D
Case Length
20.5"
Entry (Entrance/Office) Function, Turn/Push Button Locking, SFIC Prep (6 or 7 pin), Less Core, 2-3/4 In. Backset, 2-3/4 In. T Strike, 15D Lever Trim, Satin Chrome
7KC Listed by Underwriters Laboratories for use on 3 hour, A label single swinging doors (4' x 8' ). Certification- This product is listed in BHMA Directory of Certified Locks and Latches as conforming to ANSI A156.3, Grade 2. California Administrative Code Title 19 and 24. Illinois Accessibility Standard. Top Cylindrical chassis to fit common door preparation. Standard and Drive-in latches available. Through-bolt mounting studs increase torque resistance. Internal steel mechanisms are corrosion treated for normal atmospheric conditions. ADA compliance title III. Lockset reversible for either hand of door without removing keyed lever.
The 7KC Series has very versatile trims and has several finishes available too it your needs.
The 7KC series is known for its quick rekeying with BEST interchangeable cores and has has a cylindrical chassis to fit common door preparation. This series is also ADA compliant, title III.
- Backset– 2 3/8" for 72KC Series; 2 3/4" for 73KC Series; 3 3/4" for 74KC Series; 5" for 75KC Series.
- Finishes– 605– bright brass, 606– satin brass, 612– satin bronze, 613– oxidized satin bronze, oil rubbed, 625– bright chromium plated, 626– satin chromium plated
- Interchangeable core– Solid brass, pin-tumbler type in lever with 7-pin core. Best Patented Keying System optional.
- Latch– 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
- Lever– 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
- Material– Component parts include brass, bronze or zinc. Internal parts are zinc dichromated steel.
- Mounting– 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
- Rose– D– 3 1/2" diameter mounting screws concealed.
- Strike– STK (standard)– 2 3/4" x 11/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
- Door thickness– 1 3/8" to 2" .
NOTE: When a heavy duty cylindrical lockset is required, our heavy duty 9K series is recommended.
