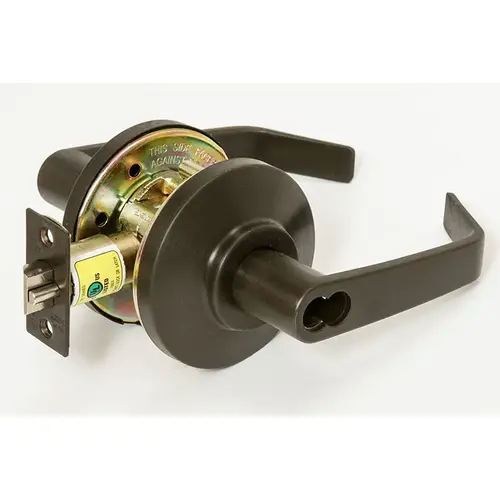

BEST 7KC37D15DS3613 7K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose ANSI Strike Less Core Oil Rubbed Bronze Finish
Item #: 7KC37D15DS3613 by BEST
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Cylindrical Chassis Fits Common Door Preparations
- Through-Bolt Mounting Studs Increase Torque Resistance
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 2
Handing
Reversible
Finish
Oil Rubbed Bronze
Function
D-Storeroom
Backset
2-3/4 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Design
15D
Series
7KC Series
Cylinder Type
7-Pin Housing, Accepts All BEST Cores
Fire Rated
3 Hours {A}
Package Height
4"
Package Length
8.25"
Package Volume
218.625
Package Width
6.625"
ADA Compliance
Yes
ANSI Function
F86
ANSI Number
F86
Bolt Protection
1/2 In.
Case Height
8.75"
Case Volume
2242.1875
Case Width
12.5"
Design A
15
Design B
D
Dust Box
Plastic
Latch Backset Dim
2-3/4 In.
Latch Type
Deadlocking Latch
Lever/Knob Design
15 - Lever
Lock Face Size
2-1/4 In. x 1-1/8 In.
Package Qty
1
Rose/Escutcheon Design
D - Rose
Screws
Combination
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height
4-7/8 In.
Strike Type
ANSI Curved Lip
Strike Width
1-1/8 In.
Base Material
Bronze
Grade
ANSI/BHMA Grade 2
Thickness
1-3/8 In. - 2 In.
Hand
Reversible
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Case Length
20.5"
Application
Heavy Duty Residential Application; Standard Traffic Application
Handle Type
Lever
Door Thickness
1-3/8" to 2"
Rose Diameter
3-1/2 Inch
Latch Throw
1/2 Inch
Finish Description
Oil Rubbed Dark Bronze
Warranty
3 Year Mechanical; 3 Year Finish
Strike Number
S3
ADA Compliant
YES
Finish Family
Dark Bronze
Lever Style
15-Contour/Angle Return
Strike Size
1-1/4" x 4-7/8"
Rose/Escutcheon Trim
D-Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2 Series-Grade 2; UL/cUL Listed; California State Fire Marshal (California Title 24)
Cylinder Type Used
SFIC Cores
Function Description
Outside knob/lever always locked/rigid. Latchbolt retracted by key in outside knob/lever or by rotating inside knob/lever. Inside knob/lever always free. Deadlocking latchbolt.
Front Size
2-1/4" x 1-1/8" x 5/32"
Function Family
Storeroom
Strike Lip
1-1/4 Inch
Product Projection
2-1/2 Inch
Trim Material
Plated Zinc (Lever)
Features
Through-Bolt Mounting Studs Increase Torque Resistance; Quick Rekeying With Best Interchangeable Core; No Exposed Keeper Hole on Keyed Levers for Increased Security; Hub Torque Spring Provides Extra Resistance to Lever Sag; Snap-on Inside Rose
Product Type
Cylindrical Lock
Manufacturer Parent
DormaKaba
Lever Length-Inches
5.25 Inch
Knob/Lever Size
5-1/4 Inch
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_Best_6
Product Overview
7KC SeriesMedium Duty Cylindrical Locks
Long-lasting durability for standard-duty applications.
BEST’s 7KC standard-duty cylindrical lock combines quality and performance in a reliable solution for a wide range of applications. With strength exceeding ANSI Grade 2 requirements, and features designed to resist attacks, promote product life, and match current architectural trends, the 7KC series delivers exceptional results for moderate traffic points.
- Cylindrical chassis to fit common door preparation.
- Standard and Drive-in latches available.
- Through-bolt mounting studs increase torque resistance.
- Quick rekey ing with BEST interchange able core.
- No exposed keeper hole on keyed levers for increased security.
- Hub torque spring provides extra resistance to lever sag.
- Snap-on inside rose (no exposed mounting screws).
- Keyed lever is removable only after removal of core.
- Internal steel mechanisms are corrosion treated for normal atmospheric conditions.
- ADA–Americans With Disabilities Act: 7KC series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6 and Illinois Accessibility Standard 400.310 (j)(8).
- Lockset reversible for either hand of door without re moving keyed lever.
- Underwriters Laboratories®: 7KC series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single (4’ x 8’) doors.
- Builders Hardware Manufacturers Association: 7KC series – Listed by BHMA for A156.2, Series 4000, Grade 2.
- California State Fire Marshal: 7KC - series 14 & 15 lever conforms with California Title 24.
- Products covered by one or more of the following patents: 5,590,555 5,794,472
- 2 3/8" for 7KC2 Series; 2 3/4" for 7KC3 Series; 3 3/4" for 7KC4 Series; 5" for 7KC5 Series
- Solid brass, pin-tumbler type in lever with 7-pin core. BEST Patented Keying System optional.
- 1/2" throw deadlocking latch. Front: 2 1/4" x 1 1/8" x 5/32" standard for 2 3/4" backset; 2 1/4" x 1" x 5/32" for 2 3/8" backset.
- 5 1/4" long handle with return. Projection on door 2 1/2". Zinc base, plated to match finish.
- Component parts include brass, bronze or zinc. Internal parts are zinc dichromate steel.
- 2 1/8" diameter bore for lock housing, 1" diameter for latch tube.
- D– 3 1/2" diameter mounting screws concealed.
- STK (standard)– 2 3/4" x 1 1/8" with curved lip & box. (ANSI A115.2 for 1 3/8" doors). S3– 4 7/8" x 1 1/4" with curved lip & box. (ANSI A115.2 for 1 3/4" doors).
- 1 3/8" to 2".
- 605 – bright brass
- 606 – satin brass
- 612 – satin bronze
- 613 – oxidized satin bronze, oil rubbed
- 625 – bright chromium plated
- 626 – satin chromium plated
