30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Pemko Products Provide an Energy Efficient Door Solution
- AWS_QUICKSHIP: Yes
- Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
- Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
- Mounting Hardware Included
- Limited 5 Year Warranty
Finish
Clear Aluminum
Series
PemkoHinge
Size
83"
Hinge Rating
280 lbs
Hinge Style
Full Surface, Geared
Mounting Holes
20
Alternate Part Number-1
143317
Hinge Size
83"
Door Type
Metal Door, Wood Door
Hinge Type
Continuous Hinge
Handing
Non-Handed
Manufacturer Parent
Assa Abloy
Sub-Series
CFS83
Standards
ANSI/BHMA A156.26-2017; Grade 1-300
Product Type
Hinge/Pivot
Product Material
Aluminum
Color Code
C
Product Length
83 Inches
Length
83"
ANSI/BHMA Standards
ANSI/BHMA A156.26-2017, Grade 1-300
UL Listing Type
Firepins Required for 3-Hour Fire Rated Doors
Product Height
15/16"
Door Thickness
1-3/4 "
Slug
pemko-cfs83-continuous-gear-hinges-cfs83
Fasteners
Tek Screws
OriginalName
Pemko CFS83 Continuous Gear Hinges
Discount
50.0%
Normalize
83"
Price Adjustment
$16.38
BHMA Grade
Grade 1
Length - Normalize
83"
Product Overview

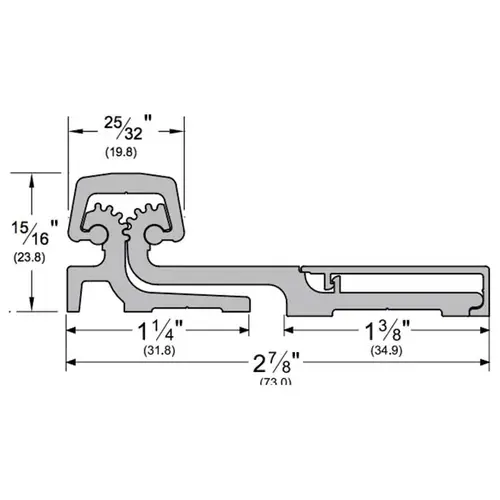

PEMKO FULL SURFACE HINGES FEATURES
Standard Duty Anodized Aluminum Continuous Geared
- Designed mainly for retrofit work
- Applied to the exposed surfaces of the door and frame
- Available in heavy duty models
- Standard duty hinge: 6" bearing spacing
- Special hinge reinforcements are not required. Hollow metal door and frame manufacturer's standard is acceptable. Removal of hinge reinforcements in the door and frame is not advised.
- Certified to ANSI/BHMA A156.26-2017, Grade 1-300
- Tested and certified by Underwriters Laboratories Inc. (USA and Canada) to UL10C
- Certified up to a 3-Hour A-Label fire listing for all 4 ft 0" x 10 ft 0" (single) and 8 ft 0" x 10 ft 0" (pair) door and frame assemblies. Special FirePins required on 3-hour (A-label) assemblies.
- Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall on masonry construction - Some door and frame conditions may require an extra 1/32" - 1/16" of clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80.
Fasteners, Frame:
- 12-24 x 11/16" Pan Head, self-drilling, self-tapping - 6 required per door leaf;
- 1/4-20 x 1-5/8".Thru-Bolt & 1/4-20 x 1" Shoulder Bolt - 4 required per door leaf.
Fasteners, Door:
- 12-24 x 7/16" FHUC, Type C threadforming, no tapping requiredNo extra tools needed for assembly;
- 10 fasteners required per frame leaf
- Wood screws available upon request
