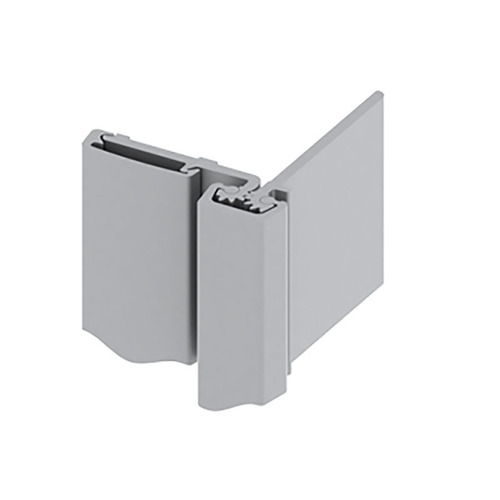

Hager 780-054HD 83 DBA 83" Half Surface Heavy Duty UL Roton Hinge Dark Bronze Anodized Aluminum Finish
Item #: 780-054HD 83 DBA by Hager
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.
- Half Surface
- ANSI/BHMA A156.26 C
- Finishes Brass, stainless steel and steel materials are polished in a range of finishes to meet strict ANSI and BHMA standards.
- Warranty: Lifetime warranty statements, associated exceptions and limitations are available online at www.hagerco.com. Hager warrants US10B finish only over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.
- Frame Leaf Alignment Rib For Proper Hinge Location
- Security Molding
- 9/32" Inset
- 5/32" Clearance
Dark Bronze Anodized Aluminum
No Special Preps
Continuous Hinge, Half Surface
3 Hours Metal, 90 Min. Wood Composite (w/Studs)
Fire rated 3 Hours Metal, 90 Min. Wood Composite (w/Studs)
Half Surface Continuous Geared Hinge, Heavy Duty, 83", DARK BRONZE
All Roton continuous geared hinges have cutout design and spacing coordination is thereby eliminated in both new construction and restoration work. Reinforcement plates are not required in doors or frames except where the gauge is too thin for the fasteners in relation to the door weight or where abusive operation is anticipated.
Wide variety of applications including widethrow, electrically modified power transfer and monitoring, anchor hinges, fire-rated spring hinges.
Hager hinges are designed to meet a number of applications. Frequency of use (low, medium or high) and door/frame types combined with end use, environmental considerations and building code compliance determine the appropriate hinge application.
