CRL PBCTT84X120 84" x 120" Power Ball Caster Tilt Table
Item #: PBCTT84X120 by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Aids Transfer of Insulating Glass Units or Single Lites of Glass
- All Tubular Steel Construction with Adjustable Legs
- Raises and Lowers by Pneumatic Cylinder Action
- Roller Toe Options Available
- Solid Vertical Glass Rest Included
34 to 36 in (863.6 to 914.4 mm)
Table Top Size
84" x 120" (2.13 x 3.05 m)
Table Height Adjustment (Inches)
34 To 36
Tilt Angle (Degrees)
Table Height Adjustment
34 in. To 36 in. (864 mm To 914 mm)

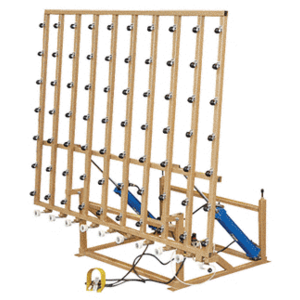

The CRL Power Ball Caster Tilt Table tilts to a vertical 84 degree position for the lateral transfer of single sheets of glass or insulating glass units. Its heavy 2" (51 mm) square by 1/8" (3 mm) thick tubular steel construction supports any size load. There is a solid wooden 2 x 6 pressure treated fixed position vertical glass rest. The neoprene casters are 2" (51 mm) diameter spherical balls that will not scratch the glass. The table height can be adjusted from 34" to 36" (863 to 914 mm). When leveled at a 36" (914 mm) transfer height, the vertical wooden glass rest will be positioned 8-5/8" (219 mm) from the floor.
NOTE: 100 psi, seven cfm air supply is required for operation. System ships partially disassembled to reduce freight. Customer must attach legs and ball casters. All hardware included.
Always wear the proper protective safety gear including safety glasses when moving glass across the caster table.
