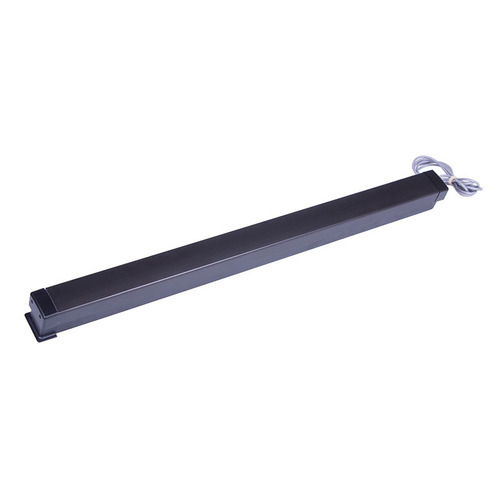

Adams Rite 8622LR-36 8600 Narrow Stile CVR Exit Device w/Electronic Latch Retraction, Dark Bronze Anodized

Item #: 8622LR-36 by Adams Rite

See reviews

$1,076.70 /each

SAVE UP TO 107.67

Buying in bulk

Roll over image to zoom in

Adams Rite 8622LR-36 8600 Narrow Stile CVR Exit Device w/Electronic Latch Retraction, Dark Bronze Anodized

Item #: 8622LR-36 by Adams Rite

See reviews See reviews

$1,076.70 /each

SAVE UP TO 107.67

Buying in bulk

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure your are satified with our products.

  • Materials: Pushbar made of extruded aluminum, clad or anodized in a variety of finishes.
  • Handing: Device is non-handed. Lever Entry Trim is field reversible.
  • Pushbar Length: Standard sizes: dimensioned for 30”, 36”, 42”, and 48” openings. Standard width bars can be field cut to the next smallest opening width.
  • Bar Height: Standard model adjusts from 30” to 44”.
  • Door Height: Standard model fits up to 8 ft door, with bar height at 40”– 44”. For doors up to 10 ft. Tall Door Kit available separately: 8055 Tall Door Kit for 8100 or 3055 Tall Door Kit for 3100.
  • Door Thickness: Suits 1-3/4” standard, up to 2-1/4”.
  • Stile Width: 3100 – Minimum 3-3/4”. Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8100 – Minimum 3-3/4”.
  • Projection: 2-15/16” when fully projected, 1-15/16”when dogged.
  • Dogging: Standard dogging with hex key or optional cylinder dogging for 8100 Series only. Electric dogging also available for 3100 and 8100 Series.
  • Fasteners: Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two required per device). Specify finish.
  • Cylinders (available separately): See CYLINDERS for cylinder make, thumbturn and trim ring information.
  • Cylinder x Fixed Pull: (ANSI/BHMA Function 03): Accepts any standard Rim cylinder.
  • 3080 Entry Trim (ANSI/BHMA Functions 08, 09): Accepts any standard diameter Mortise cylinder with MS cam. Accommodates cylinder lengths from 1” to 1-1/4”. (Available separately)
  • Warranty: Five year limited.

Hand

Non-Handed

Color

Dark Bronze Anodized Aluminum

Color Code

313

Door Thickness

1-3/4 In. - 2-1/4 In.

Device Length

36 Inch (3 Foot)

Door Height

8 Foot (96 Inches)

Fire Rated

No

Device Type

Concealed Vertical Rod

Electric Options

LR-Electric Latch Retraction

Includes Trim

No

Mechanical Function

Universal

Minimum Stile Size

2 In.

Package Qty

1

Physical Appearance

Narrow Stile Pushpad

Finish

Dark Bronze Anodized

Handing

Non-Handed

Function

Exit Only

Stile

Narrow Stile

Finish Description

Dark Bronze Anodized

Product Type

Exit Device

Length

3' Device

For Aluminum Doors, 313 Dark Bronze Anodized, Latch Retraction, 36" Door Width
8600 SeriesNarrow Stile Concealed Vertical Rod Exit Device

The 8600 Series Narrow Stile Concealed Vertical Rod Exit Device is designed for narrow stile aluminum applications that require a lifesafety exit device with concealed vertical rods for two-point locking. Designed for use in applications with single doors or pairs of doors.

Certifications:
  • UL 305 Panic hardware
  • ANSI/BHMA A156.3-2008 Grade 1
  • ANSI/BHMA A156.3-2014 Grade 2
Specifications: Materials:
  • Push bar made of extruded aluminum, cladded or anodized in a variety of finishes.
Handing:
  • Device is non-handed.
Push bar Length:
  • Standard sizes: dimensioned for 30" [762.0 mm], 36" [914.4 mm], 42" [1,066.8 mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Bar Height:
  • Standard model adjusts from 30" [762 mm] to 44" [1117.6 mm].
Door Thickness:
  • Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm]. Device requires modification when used with cylinder in doors over 1-3/4" [44.5 mm]. Please contact factory for more details.
Door Height:
  • Standard configuration suitable for doors up to 66" [1,676.4 mm] above the selected bar height. For doors over 66" [1,676.4 mm] above bar height, up to 10' [3.05 m] use 8655 Tall Door Kit available separately.
Stile Width:
  • Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Stile Wall:
  • Doors with stile walls other than 1/8" [3.2 mm] require modification.
Projection:
  • 2-5/8" [66.7 mm] when fully projected,
  • 1-5/8" [41.3 mm] when dogged.
Dogging:
  • Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
Fasteners:
  • Standard machine screws.
Cylinders:
  • Accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately.
Cylinder x Fixed Pull Functions:
  • For entry trim function 03 (Night latch - key releases latch) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accepts any standard mortise cylinder with MS® cam.
  • If key entry operation is required, any standard mortise cylinder with MS® cam can be installed through an 8650 Cylinder Escutcheon. 8650 Cylinder Escutcheon Kit available separately.
Entry Trim Functions:
  • For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4 mm] to 1-1/4" [31.8 mm]. Available separately.
Bolts and Strikes:
  • The patented top latching mechanism utilizes a rotating top bolt which deadlatches around the header strike, interlocking the door to the frame. Supplied with standard header strike. Adjustable protected steel rods. The hexagonal, hardened steel bottom bolt is shielded in a cast housing for strength and stability.
Standard Package:
  • Individually boxed.
Shipping Weight:
  • 12 lbs
  • [5.44 kg]
Options:
  • Available in top rod only version, less bottom rod.
  • Specify by adding "T" after exit device model number.
Electrification Options:
  • Motorized Latch Retraction
  • Electric Latch Retraction (LR)
  • Electric Dogging
  • Alarm
  • Monitoring
  • Cylinder Dogging
  • Matching End Caps
