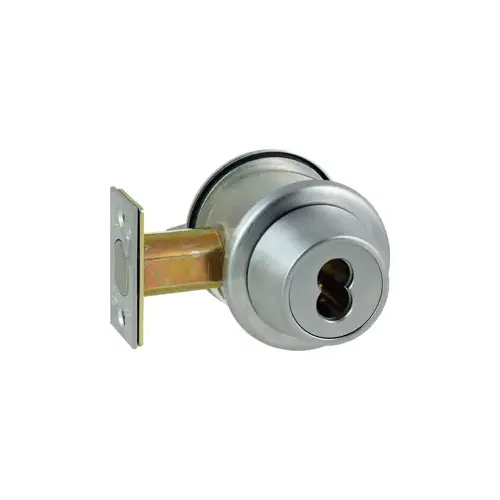

BEST 8T37KSTK626 8T Series 2-3/4" Backset 7 Pin Single Cylinder Deadbolt Standard Strike Less Core Satin Chrome Finish

8T SeriesTubular Deadbolts

Premium materials, security, and performance.
Incorporating top quality design, engineering, and materials, BEST’s T Series tubular deadbolts are easy to install, integrate, and rely on for durable security. Our T Series deadbolts provide for simple installation, without compromising security and performance. Solid construction and a 1" stainless steel throw bolt offer enhanced durability and extra protection, while design features like tapered cylinder rings and optional hidden mounting screws make T Series deadbolts attack resistant. T Series tubular deadbolts deliver the quality and reliability you expect from BEST.

Features:

• No exposed mounting screws standard on 8T2/8T3 double cylinder M function only (available as an op tion on 8T2/8T3 K, L, and S function)

• Full 1" stainless steel throw deadbolt

• Free-turning, wrench-resistant, tapered cylinder ring

• 8T2/8T3-solid extruded brass or bronze cylind

• Stainless steel for strength and corrosion resistance

• Simple installation; self-aligning and reversible strike

• May be keyed into existing BEST® masterkeyed system

• The original interchangeable core permits instant, economical rekeying

• ADA turn lever

• Deadbolt UL listed for use as auxiliary lock type on 3 hr. fire doors (GWXT). These locks also carry the C-UL mark which is officially accepted in all of Canada, indicating compliance with appropriate Canadian standards and codes.

• Products protected by one or more of the following patents: 4,301,667 D290,085 4,843,852 5,590,555 5,794,472
• Other Patents Pending

Specifications: Backset:

• 8T2 – 2 3/8"
• 8T3 – 2 3/4"

Cylinders:

• 8T2/8T3– ANSI A156.36-2010 Auxiliary Locks, Grade 1
• Operational, BHMA, Strength and Security with drill-resistant core
• (1CD/1CDP.1CDB/1CDF/1CDM/1CDX)

Deadbolt:

• 8T2/8T3– 1" throw, 5/8" x 7/8" solid stainless steel bolt. Housing fits 1" bore.

Door thickness:

• Fits 1 3/4" doors (standard)
• 8T2/8T3: fits doors - from 1 3/8" to 3"
• Specify if other than 1 3/4"

Faceplate:

• Brass or bronze base materia
• 8T2 – 1" x 2 1/4"
• 8T3 – 1 1/8" x 2 1/4"

8T2/8T3 Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 611 – Bright bronze
• 612 – Satin bronze
• 613 – Dark oxidized satin
• 625 – Bright chromium
• 626 – Satin chromium

Strikes:

• 8TSTK – rectangular 1 1/8" x 2 3/4" (ANSI A156.36-2010)
• 8TS1 – curved lip 1 1/4" x 4 7/8" (ANSI A156.36-2010)
• 8TS4 – curved lip 1 1/8" x 2 3/4" (ANSI A156.36-2010)
• 8TS5 – high security rectangular 1 1/4" x 4 7/8"
  (ANSI A156.36-2010)

Trim:

• Wrought brass or bronze cylinder rose or turn lever rose, 2 3/4" dia. to cover 2 1/8" bore.
• Machined brass or bronze cylinder ring.
