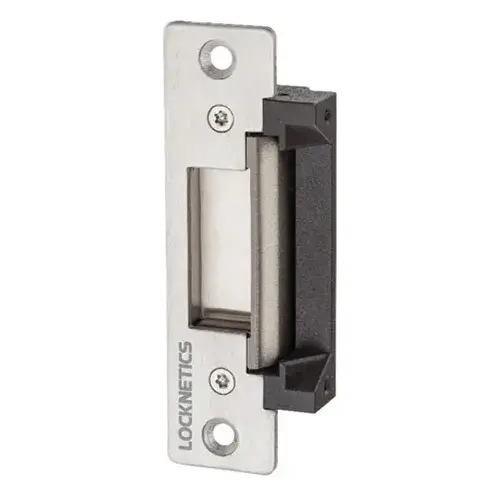

Locknetics CS450-32D CS450-32D Cylindrical strike 9/16" deep 12 / 24V 2 faceplates - Satin Stainless Steel
Item #: CS450-32D by Locknetics
Brand: Locknetics
UPC #: 043156645893
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Two Faceplates Included: Radius and Square Edge Stainless Steel (4-7/8" x 1-1/4")
- UL1034 and UL294 Listed
- Dual Voltage 12 or 24 VDC
- Field Selectable Fail Safe / Fail Secure
- Fire Rating Available on Some Models
- Low Profile
- Included Trim Piece for Installation Flexibility and Improved Apperance
- Mounting Tabs Included for Aluminum Frame Installation
Finish
Satin Stainless Steel
Series
CS450 Series
Package Volume
71.09
Function
Selectable Safe or Secure
Operating Voltage
12VDC/24VDC
Package Qty
1
Package Height
2.5"
Package Width
3.5"
Color Code
630/US32D
Origin
Taiwan
Package Length
8.5"
Mount
Metal and Wood Door Frame
Finish Description
Satin Stainless Steel
Product Type
Electric Strike
Voltage
24 VDC
Mounting Type
Aluminum Frame Installation
For Use With
Mortise Lock Sets
Application
Metal and Wood Door Frames
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
Dual Voltage 12VDC at 0.3A/24VDC at 0.15A
Faceplate Shape
Radius and Square Edge
Product Height
4-7/8 Inch
Product Length
1-11/16 Inch
Product Width
1-3/16 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Standards
UL1034 Burglar Resistant Electric Locking Mechanisms Listed; UL294 (Indoor) Listed
Faceplate Dimension
4-7/8" x 1-1/4"
Function Family
Electric Strike
Features
Low Profile; Included Trim Piece for Installation Flexibility and Improved Appearance
Lip Extension
1/2; 1; 2 Inch; Inch; Inch
Manufacturer Parent
Allegion
Sub-Series
CS450-32D
Alternate Part Number-1
158441
Item Weight
2.2 lbs
Height
2.5
Length
8.63
Width
3.31
Dimension
1-11/16" x 4-7/8"
Use With
Electric Strikes
Material
Steel
Strike
Electric Strike
Fire Rated
No
Manufacturer Warranty
Limited 5 Year Warranty
UL Listing Type
UL1034 and UL294
Power Supply
Wired
Hazardous Material
No
Strike Dimension
1-11/16" x 4-7/8"
Finish code
US32D
No of inners
1
Door Type
Metal, Wood
Electronic
Yes
Battery Operated
NO
Lock Type
Mortise or Cylindrical
Product Finish
630 - Satin Stainless Steel
Fail Safe / Fail Secure
Field Selectable
Latchbolt Monitoring
None - No Latch Bolt Monitoring
Product Overview
Locknetics CS450 Low Profile Electric Strike, Latchbolt up to 9/16"
The low, versatile profile CS Series of electric strikes are designed for use with cylindrical locksets and select mortise locksets without deadbolt for both metal and wood door frames.
Features:
- Simple and easy field selectable fail-safe/fail-secure
- Field selectable 12/24 VDC
- Two face plates and trim piece included for improved appearance
- Voltage spike suppressor included
- US10B faceplates available
- CS450 series accepts latchbolt up to 9/16"
- CS750 series accepts latchbolt up to 3/4"
- Latch bolt monitoring available
Finishes: 630/US32D: Satin Stainless Steel.
RESOURCES & DOWNLOADSLocknetics Access Control Sell Sheet
