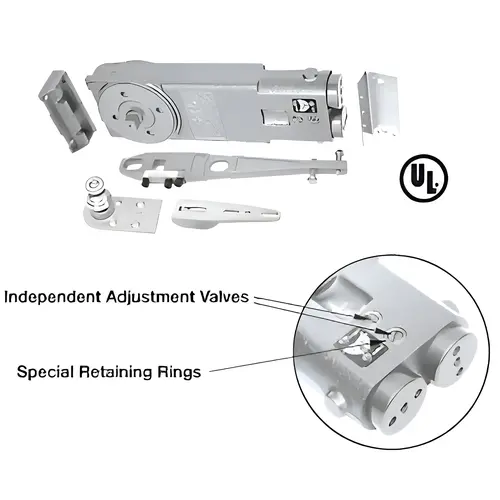

These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "S" Side-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 degree and 105 degree Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL 90 degree No Hold Open Overhead Concealed Closer Package for Side-Load Installation A.D.A. "S" Package
Item #: CRL8962S by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For Doors with 1/2" (13 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- Includes All Necessary Parts
- 5 Year Limited Warranty
- UL Listed
Type
Center Hung
Spring Size
8.5
No Hold Open
90°
Maximum Door Weight
200
UL Listed
Yes
Includes
CRL6962, CRL8010FS, CRL8010S, CRL8010DP
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum, Hollow Metal
Similar
CRL8762GE, CRL8770GE
Americans with Disabilities Act (ADA) Compliant
Yes
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Bottom Pivot Type
Dual Purpose Pivot
Spindle Length (Inches)
1/2"
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Material
Aluminum
Handing
Double Acting
Hold Open
No
Degree Hold Open
90°
Spindle
1/2
WARNING
Closer Not To Be Used For Doors Weighing In Excess Of 200 lbs Or Wider Than 36"
Bottom Door Rail Depth
1
Top Rail Depth
1/2
Product Overview
These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "S" Side-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 degree and 105 degree Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
