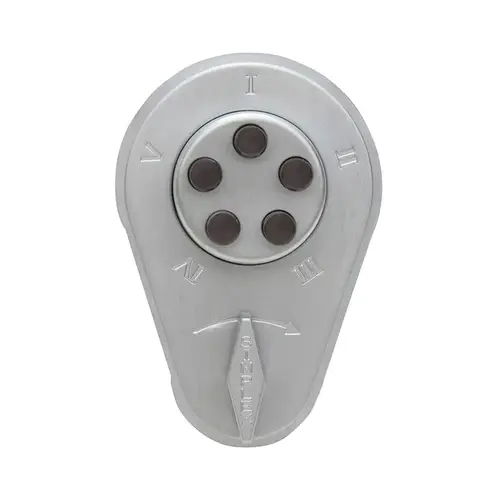

Kaba Access 9040000-26D-41Click To Copy 900 Series Auxiliary Pushbutton Deadbolt, Satin Chrome

Simplex® 900 SeriesDeadbolt/Spring Latch

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

Mechanical pushbutton lock provides fully mechanical access control, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking spring latch models automatically relock each time the door closes. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features: Access Control:

• Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides fully mechanical access control, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking spring latch models automatically relock each time the door closes.

No Battery:

• Fully mechanical lock eliminates the material and labor expense of battery replacements

Locking Device Options:

• Deadbolt—1" throw, manual relock Deadlocking Latch—5/8" throw with automatic relock

Number of Codes:

• Single access code—one easy-to-manage code for all users

Programming:

• Lock is easily programmed via keypad without removing lock from the door

Handing:

• Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation

Optional Key Override:

• Can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently). Override models can be ordered with or without a cylinder.

Operation Modes:

• Pushbutton Access
• Latch Holdback—keeps latch retracted to allow access with combination (select models)

Economical:

• A cost effective access control solution

Options:

• Add panic bar release kit (select models)

• Keyed alike option available (select models)

• Latch holdback (select models)

• D.O.D. compliant (select model)

• Substitute a 2 1/2" (64 mm) lever in place of the standard inside thumbturn (select models)

Mechanical Features: Construction:

• All metal cast front housing, force-resistant, clutch-protected thumbturn, metal exterior trim plate

Numeric Keypad:

• Vandal resistant, solid metal pushbuttons

Door Handing:

• Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation

Finishes:

• 04 (606) Satin Brass and 26D (626) Satin Chrome, Model 929/927: 26D (626) Satin Chrome only.

Latch:

• 1" (25 mm) deadbolt; 5/8" deadlocking spring latch

Backset:

• 2 9/16" (65 mm) for outswing doors, 2 1/2" (64 mm) for inswing doors

Strike:

• Includes strike plate for outswing doors, cast box strike for inswing doors; metal door frames require the optional surface mortise box strike or use of an adapter kit

Weight:

• 4 lbs. (1.8 kg)

Installation: Door Thickness:

• 1 3/8" (35 mm) to 1 1/2" (38 mm)
• 1 3/4" (44 mm) to 2 1/8" (54 mm)
• Model 929: Lockset for D.O.D. standards, 1 3/4" (44 mm) to 2 1/8" (54 mm) only
• Model 927: Lockset for D.O.D. standards, 1 3/8" (35 mm) to 1 1/2" (38 mm) only

Items Supplied Include:

• Installation manual, full-scale template, strike for inswing and outswing doors (appropriate to latch type), and required installation hardware

Certification and Testing: Durability:

• Weather resistant

Warranty:

• 1-year warranty

Functions: Models 902, 904, 906, 910:

• Exterior -
  • Combination Entry
  • Deadbolt
  • 1" (25 mm) Throw, Flat Face Plate
• Interior (spring latch models) -
• Auxiliary Lock
• Manual Relock
• Key Override (select models)

Models 917, 919, 935, 938:

• Exterior -
  • Combination Entry
  • Deadlocking Latch
  • 5/8" (16 mm) Throw, Flat Face Plate
• Interior (spring latch models) -
• Primary or Auxiliary Lock
• Automatic Relock
• Key Override (select models)

Model 927, 929:

• Exterior -
  • Combination Entry
  • Security Lock
  • 5/8" (16 mm) Throw
• Interior (spring latch models) -
• Primary or Auxiliary Lock
• Automatic Relock
• D.O.D. Compliant
