• 1/4" Extruded Aluminum cover plate provides durability and tamper resistance • Spanner head stainless steel machine screws for mounting on standard electrical box discourage unauthorized attempts to remove plate, spanner wrench supplied • Switch is UL / CSA • Rating: 10A/250V // 15A/125V • Accepts standard architectural size cylinders • Unique switch bracket design provides adjustment capability for the switch to accept standard straight cams or clover cams with either 1-1/8" or 1-1/4" cylinder length • Cylinder locking ring included. NOTE: Cylinder not included • Pinch-on wire connectors – no soldering required
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

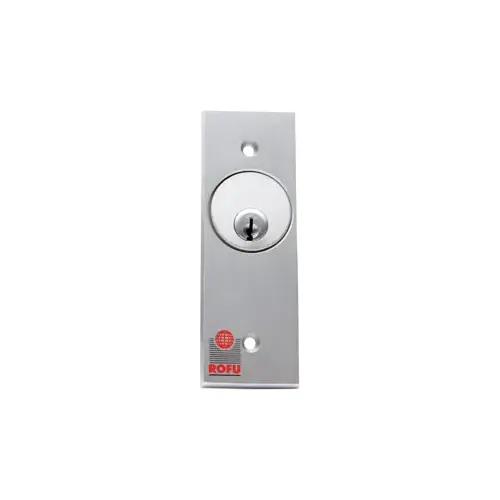

Rofu Security International 9230 US28 KEY SWITCH NARROW STILE MAINT MAINTAINED SPDT 10A@250V / 15A@125V ALUMINUM
Item #: 9230 US28 by Rofu
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
153143
Style
Key Switch
Type
SPDT
Mounting
Mullion Mount, Surface Mount
Switch Mode
Maintained Action
Voltage/Amp Rating
125V AC
Product Overview
ROFU 9200 Key Switches
ROFU 9200 Key Switch Series SPDT
Standard Plate (Single Gang Plate 3" x 4-3/4")
Specify US28 Aluminum or US40 Duronatic
| Model | Description |
| 9200 | Momentary |
| 9200-2 | Momentary x 2 switches (ideal for a school or up/down control) |
| 9201 | Momentary with bi-colored LED |
| 9202 | W/ Pneumatic time delay (adjustable 1-30 Seconds for re-lock) |
| 9210 | Maintained |
| 9211 | Maintained with bi-colored LED |
| Model | Description |
| 9200 | Momentary |
| 9200-2 | Momentary x 2 switches (ideal for a school or up/down control) |
| 9201 | Momentary with bi-colored LED |
| 9202 | W/ Pneumatic time delay (adjustable 1-30 Seconds for re-lock) |
| 9210 | Maintained |
| 9211 | Maintained with bi-colored LED |
Narrow Plate (Mullion Mounting 1-5/8"x 4-3/4")
Specify US28 Aluminum or US40 Duronatic
| Model | Description |
| 9220 | Momentary |
| 9221 | Momentary with bi-colored LED |
| 9222 | W/ Pneumatic time delay (adjustable 1-30 Seconds for re-lock) |
| 9230 | Maintained |
| 9231 | Maintained with bi-colored LED |
| Model | Description |
| 9220 | Momentary |
| 9221 | Momentary with bi-colored LED |
| 9222 | W/ Pneumatic time delay (adjustable 1-30 Seconds for re-lock) |
| 9230 | Maintained |
| 9231 | Maintained with bi-colored LED |
