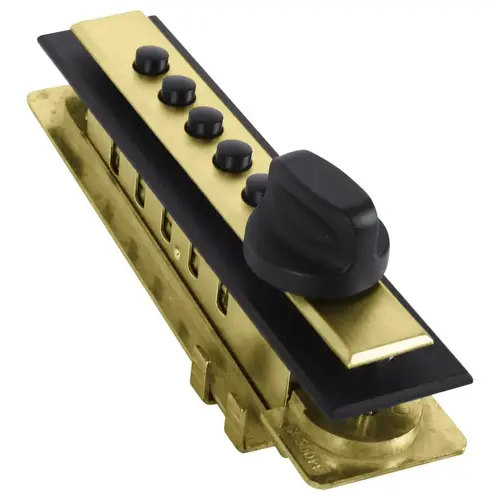

Simplex 9600 Series Cabinet Locks with Clutch Ball Bearing Knob and Trim Plate Satin Brass

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Kaba Access 9621C20-04-41 Simplex 9600 Series Cabinet Locks with Clutch Ball Bearing Knob and Trim Plate Satin Brass

Item #: 9621C20-04-41 by Ilco

Brand: Kaba Access

See reviewsSee reviews
See reviews summary
In Stock

$134.75

137.00 /each
SAVE UP TO 13.47
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available

Finish: Satin Brass

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Construction: All metal cast face plate; force-resistant, protected exterior knob
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Handing: Non-handed
  • Bolt: End-throw/cross-throw deadbolt (must be manually relocked) End-throw/cross-throw spring latch (with automatic relock)
  • Door Thickness: Wood doors: ⅝" (16 mm) to ⅞" (22 mm) Sheet metal applications: 14 to 20 gauge 1⁄3", 1⁄16", 1⁄4"
  • Installation: Horizontal or vertical. Two-step mortise installation using router or 5½" (140 mm) x 1" (25 mm) slot with trim plate (for wood applications). Punched slot or series of 7⁄16" (11 mm) drilled holes (for metal applications).
  • Warranty: 1-year warranty

Color

Satin Brass

Package Qty

1

Color Code

606/US4

Lock Platform

Cabinet Lock

Base Material

Brass

Finish

606/US4

Handle Type

Knob

Bolt Throw

Cross Throw

Door Handing

Non-Handed

Bearing Type

Ball Bearing

Substrate Type

Brass or Bronze

Locking Device

Standard Deadbolt

Features

Vandal resistant, solid metal pushbuttons

Lock Type

Cylindrical

Door Material and Thickness

Wood Application, 3/8" to 7/8" door thickness

Product Overview

Cabinet Lock, Wood Application, Cross Throw, Clutch Ball Bearing Knob, With Trim Plate, Standard Deadbolt, Satin Brass

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

The 9600 Series is specifically designed for cabinet doors, desk drawers, and similar applications.
