Features
- UL listed to ANSI 250.13 Severe Windstorm
- CAN4-S104 (ULC-S104), NFPA-252 and ASTM-E152 fire door conformant
- Florida Building Code Approved (FL#14307)
- California Fire Marshall listed
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 10C fire-rated, 3 hour (fail secure only)
- UL 294 (6th Edition) listed
- ANSI/BHMA, A156.31 Grade 1 (#E09731, #E09732, #E09373)
- RoHS compliant
- Patent # 6,390,520, 6,392,520 and 8,454,520
Use With
Rim Exit Devices
Package Volume
79.734375
Amp Draw
.45 @ 12V .25 @ 24V
Color
Satin Brass
Keeper Size
SK
Function
Field Selectable (Safe/Secure)
Grade
Grade 1
Fire Rated
3 Hours {A}, Yes
Special Marks
Fire rated 3 Hours {A}
Configuration
Centered
Operating Voltage
12VDC/24VDC
Application
Squarebolt Rim Panic Device
Package Qty
1
Package Height
2.25"
Package Width
3.375"
Color Code
606/US4
Origin
USA
Holding Force
2000
BAA Qualified
Yes
Switch Type
LBSM
Base Material
Brass
Package Length
10.5"
Frame Application
Metal or Wood
Voltage
12/24 VDC
Finish
606 - Satin Brass
Faceplate
9"
Model
LBSM - Surface Mounted Electric Strike with Latchbolt Strike Monitor
Door Type
Metal, Wood
Electronic
Yes
Substrate Type
Stainless Steel
Product Depth
1-3/4"
Product Width
3/4"
Dynamic Strength
120 ft-lbs
Lock Type
Exit Device
Preload Capable
No
Fail Safe / Fail Secure
Field Selectable
Endurance Cycles
1,000,000
Latch Specification
Latchbolt
Outdoor Rated
Yes
Windstorm Rated
Yes
Product Overview

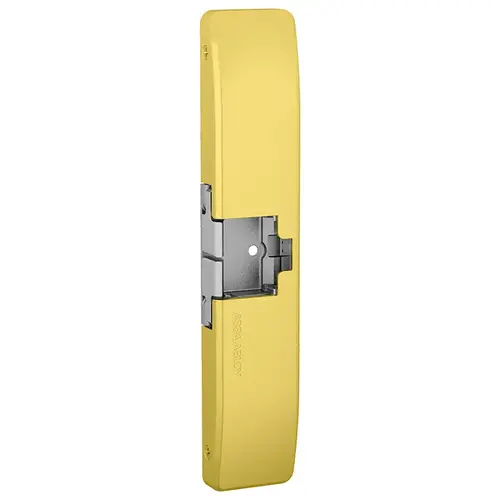

Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Fire Rated, Latchbolt Strike Monitor, Satin Brass
The 9700 Series is a heavy duty, surface mounted electric strike designed to accommodate Corbin Russwin SecureBolt and Yale SquareBolt exit devices. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC.
The 9700 Series is a surface mounted, heavy duty, electric strike.
The 9700 Series is designed to accommodate Corbin Russwin SecureBolt™ and Yale SquareBolt® exit devices. This strike is field selectable for fail scure and fail safe operstion and for 12 or 24VDC.
