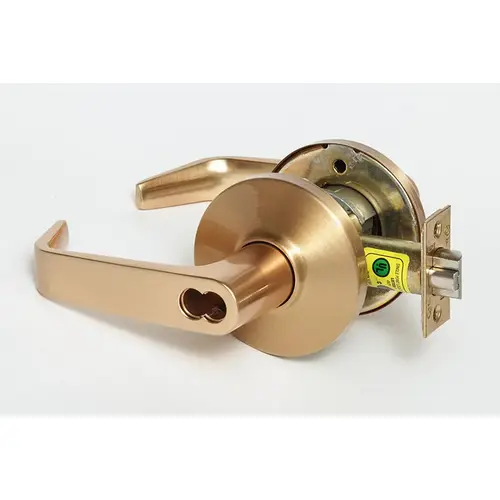

Stanley Best 9K37AB15DS3612 9K Series 2-3/4" Backset 7 Pin Entry 15 Lever and D Rose with ANSI Strike Less Core Satin Bronze Finish
Item #: 9K37AB15DS3612 by BEST
In Stock $717.39 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- ADA–Americans With Disabilities Act: 9K series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6
- Builders Hardware Manufacturers Association: 9K series – Listed by BHMA for A156.2, Series 4000, Grade 1.
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Underwriters Laboratories®: 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.
- California State Fire Marshal: 9K series – Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.
- Strong Retractor Springs Provide Resistance To Lever Sag
- Backset – 2 3 /4” standard, 3 3 /4” and 5” available.
- Chassis – Critical latch and chassis components are brass or corrosion-treated steel. 2 1 /16” diameter to fit 2 1 /8” hole in door . (Conforms to ANSI A115.2). Lost Motion feature available as an option. (see page 5 for options/features).
- Door thickness – Available for 1 3 /4” to
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 1
Finish
Satin Bronze
Backset
2-3/4" Backset
Handing
Reversible
Function
AB-Entrance
Strike
S3 ANSI Strike
Design
15D
Cylinder Type
SFIC Prep Less Core
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
4"
Package Length
8.125"
Package Volume
215.3125
Package Width
6.625"
ANSI Function
F109 - Entry/Office
Bolt Protection
9/16"
Case Height
8.75"
Case Volume
2242.1875
Case Width
12.5"
Latch Backset Dim
2-3/4"
Latch Number
8KL3DL
Latch Type
Dead Latch (Guarded)
Lever/Knob Design
15 - Lever
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
D - Rose
Screws
Combination
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height
4-7/8"
Strike Number
8KS3
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Bronze
Grade
Grade 1
Thickness
1-3/4" - 2-1/4"
Hand
Not Handed
Color
Satin Bronze Clear Coated
Color Code
612/US10
Case Length
20.5"
Entrance, Grade 1 Cylindrical Lock, 15D Design, Satin Bronze,
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall.
Florida Building Code and Miami-Dade County Code: 9K series – 9 /16" latch throw – Listed by Florida Building Code and Miami-Dade County at ± 75 PSF for single doors. 9K series – 3 /4" latch throw – Listed by Florida Building Code and Miami Dade County at ± 80 PSF for single doors and ± 50 PSF for double doors. “WS" option must be ordered for the lock to include a “MiamiDade County Product Control Approved" label for inspection purposes.
