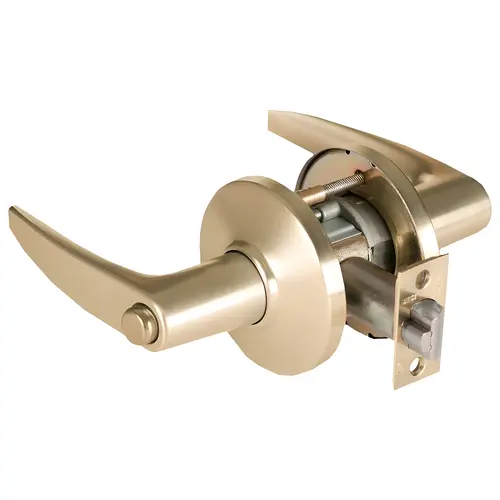

Stanley Best 9K Series 2-3/4" Backset Privacy 16 Lever and D Rose with ANSI Strike Satin Brass Finish
Item #: 9K30L16DS3606 by BEST
Brand: Stanley Best
See reviews
In Stock
$693.65
/eachQUICK SHIPPING*Usually ships in 1 business dayIn stock: 28 units available
Lever Style: Curved without Return
Contour with Angle Return
Curved with Return
Curved without Return
Finish: 606 - Satin Brass
605 - Bright Brass
606 - Satin Brass
611 - Bright Bronze
612 - Satin Bronze
613 - Oil Rubbed Bronze
618 - Bright Nickel
619 - Satin Nickel
622 - Matte Black
625 - Bright Chrome
626 - Satin Chrome
626AM - Satin Chrome Antimicrobial
690 - Statuary Dark Bronze
Backset: 2-3/4"
2-3/4"
3-3/4"
5"
Strike: S3 - 4-7/8" ANSI Strike
S3 - 4-7/8" ANSI Strike
STK - 2-3/4" ANSI Strike
Rose Type: D Rose - 3-1/2" convex
C Rose - 3" convex
D Rose - 3-1/2" convex
QTY
-
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- ADA–Americans With Disabilities Act: 9K series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6
- Builders Hardware Manufacturers Association: 9K series – Listed by BHMA for A156.2, Series 4000, Grade 1.
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Underwriters Laboratories®: 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.
- California State Fire Marshal: 9K series – Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.
- Strong Retractor Springs Provide Resistance To Lever Sag
- Backset – 2 3 /4” standard, 3 3 /4” and 5” available.
- Chassis – Critical latch and chassis components are brass or corrosion-treated steel. 2 1 /16” diameter to fit 2 1 /8” hole in door . (Conforms to ANSI A115.2). Lost Motion feature available as an option. (see page 5 for options/features).
- Door thickness – Available for 1 3 /4” to
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 1
Backset
2-3/4"
Design
16D
Finish
606 - Satin Brass
Function
L-Privacy
Handing
Reversible
Series
9K Series
Strike
S3 - 4-7/8" ANSI Strike
Fire Rated
3 Hours {A}
Origin
USA
BAA Qualified
Yes
Package Height
4"
Package Length
8.125"
Package Volume
215.3125
Package Width
6.625"
ANSI Function
F76 - Privacy
Bolt Protection
9/16"
Case Height
8.75"
Case Volume
2242.1875
Case Width
12.5"
Latch Backset Dim
2-3/4"
Latch Number
8KL3SL
Latch Type
Spring Latch (Unguarded)
Lever/Knob Design
16 - Lever
Lock Face Size
2-1/4" x 1-1/8"
Package Qty
1
Rose/Escutcheon Design
D - Rose
Screws
Combination
Special Marks
Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Height
4-7/8"
Strike Number
8KS3
Strike Type
ASA
Strike Width
1-1/4"
Base Material
Brass
Grade
Grade 1
Thickness
1-3/4" - 2-1/4"
Hand
Not Handed
Color Code
606/US4
Case Length
20.5"
ANSI/BHMA Standards
F76
Keyed
No
Handle Type
Lever
Electronic
No
Door Handing
Non-Handed
Lever Style
Curved without Return
Standard Strike
2-3/4 x 1-1/8" with curved lip and box
Rose Type
D Rose - 3-1/2" convex
Substrate Type
Corrosion-Treated Steel
Lock Type
Cylindrical
Duty Level
Heavy Duty
Standard Latch
9/16" Throw
Product Overview
Privacy, Grade 1 Cylindrical Lock, 16D Design, Satin Brass,
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall.
Florida Building Code and Miami-Dade County Code: 9K series – 9 /16" latch throw – Listed by Florida Building Code and Miami-Dade County at ± 75 PSF for single doors. 9K series – 3 /4" latch throw – Listed by Florida Building Code and Miami Dade County at ± 80 PSF for single doors and ± 50 PSF for double doors. “WS" option must be ordered for the lock to include a “MiamiDade County Product Control Approved" label for inspection purposes.
