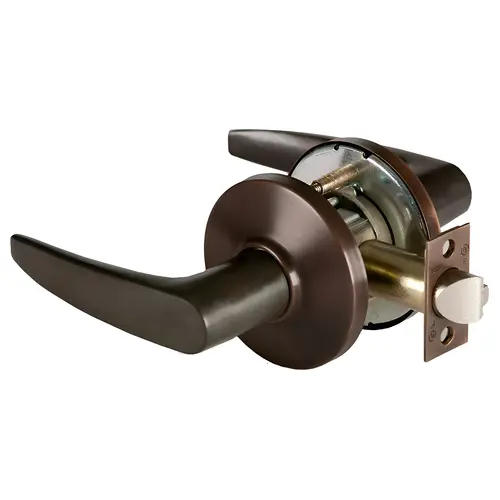

BEST 9K30P16DSTK613 Cylindrical Lock Dark Oxidized Satin Bronze Oil Rubbed
Item #: 9K30P16DSTK613 by BEST
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ADA–Americans With Disabilities Act: 9K series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6
- Builders Hardware Manufacturers Association: 9K series – Listed by BHMA for A156.2, Series 4000, Grade 1.
- Underwriters Laboratories®: 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.
- California State Fire Marshal: 9K series – Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.
- Backset – 2 3 /4” standard, 3 3 /4” and 5” available.
- Chassis – Critical latch and chassis components are brass or corrosion-treated steel. 2 1 /16” diameter to fit 2 1 /8” hole in door . (Conforms to ANSI A115.2). Lost Motion feature available as an option. (see page 5 for options/features).
- Door thickness – Available for 1 3 /4” to
Thickness
1-3/4" - 2-1/4"
Strike Number
8KS2
Package Volume
215.3125
Latch Number
8KL3SL
Color
Dark Oxidized Satin Bronze Oil Rubbed
Case Width
12.5"
Function
P-Patio
Latch Type
Spring Latch (Unguarded)
ANSI Function
F77 - Patio/Inner Office
Hand
Not Handed
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Width
1-1/8"
Latch Backset Dim
2-3/4"
Lock Face Size
2-1/4" x 1-1/8"
Case Length
20.5"
Package Qty
1
Package Height
4"
Screws
Combination
Case Height
8.75"
Package Width
6.625"
Bolt Protection
9/16"
Case Volume
2242.1875
Color Code
613/US10B
Strike Type
T - Standard
Origin
USA
BAA Qualified
Yes
Rose/Escutcheon Design
D - Rose
Base Material
Bronze
Strike Height
2-3/4"
Lever/Knob Design
16 - Lever
Package Length
8.125"
Product Overview
Patio, Grade 1 Cylindrical Lock, 16D Design, Oil Rubbed Bronze
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall.
Florida Building Code and Miami-Dade County Code: 9K series – 9 /16" latch throw – Listed by Florida Building Code and Miami-Dade County at ± 75 PSF for single doors. 9K series – 3 /4" latch throw – Listed by Florida Building Code and Miami Dade County at ± 80 PSF for single doors and ± 50 PSF for double doors. “WS" option must be ordered for the lock to include a “MiamiDade County Product Control Approved" label for inspection purposes.
