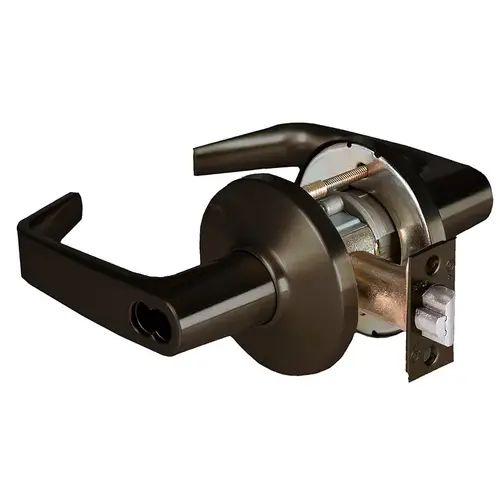

Stanley Best 9K37D15DS3690 9K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose with ANSI Strike Less Core Dark Bronze Finish
Item #: 9K37D15DS3690 by BEST
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ADA–Americans With Disabilities Act: 9K series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Builders Hardware Manufacturers Association: 9K series – Listed by BHMA for A156.2, Series 4000, Grade 1.
- Underwriters Laboratories®: 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.
- Strong Retractor Springs Provide Resistance To Lever Sag
- Quick And Easy Rekeying With Best Interchangeable Cores
- California State Fire Marshal: 9K series – Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.
- Ansi A156.2 Grade 1
- Backset – 2 3 /4” standard, 3 3 /4” and 5” available.
- Chassis – Critical latch and chassis components are brass or corrosion-treated steel. 2 1 /16” diameter to fit 2 1 /8” hole in door . (Conforms to ANSI A115.2). Lost Motion feature available as an option. (see page 5 for options/features).
- Door thickness – Available for 1 3 /4” to
Thickness
1-3/4" - 2-1/4"
Strike Number
8KS3
Package Volume
215.3125
Latch Number
8KL3DL
Color
Dark Bronze Painted
Case Width
12.5"
Function
Storeroom
Latch Type
Dead Latch (Guarded)
ANSI Function
F86 - Storeroom
Hand
Not Handed
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Cylinder Type
SFIC Prep Less Core
Lock Face Size
2-1/4" x 1-1/8"
Case Length
20.5"
Package Qty
1
Package Height
4"
Screws
Combination
Case Height
8.75"
Package Width
6.625"
Bolt Protection
9/16"
Case Volume
2242.1875
Color Code
690/US20
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Rose/Escutcheon Design
D - Rose
Base Material
VARIES
Strike Height
4-7/8"
Lever/Knob Design
15 - Lever
Package Length
8.125"
Finish
Dark Bronze
Backset
2-3/4" Backset
Handing
Reversible
Strike
S3 ANSI Strike
Design
15D
Series
9K Series
Product Overview
9K Series 2-3/4" Backset 7 Pin Storeroom 15 Lever and D Rose with ANSI Strike Less Core Dark Bronze Finish
