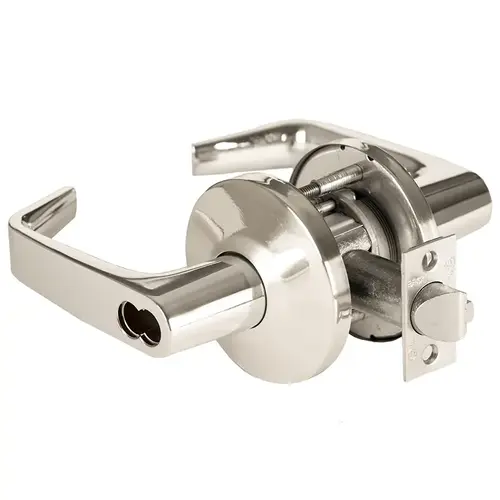

BEST 9K37S15LS3618 Cylindrical Lock Bright Nickel Plated Clear Coated
Item #: 9K37S15LS3618 by BEST
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- ADA–Americans With Disabilities Act: 9K series – The design and operation of the BEST® cylindrical lock meets the intent of the standard for ANSI A117.1 section 404.2.6
- Builders Hardware Manufacturers Association: 9K series – Listed by BHMA for A156.2, Series 4000, Grade 1.
- Underwriters Laboratories®: 9K series – Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors.
- California State Fire Marshal: 9K series – Listed with California State Fire Marshal. 9K series 14 & 15 lever conforms with California Title 24.
- Backset – 2 3 /4” standard, 3 3 /4” and 5” available.
- Chassis – Critical latch and chassis components are brass or corrosion-treated steel. 2 1 /16” diameter to fit 2 1 /8” hole in door . (Conforms to ANSI A115.2). Lost Motion feature available as an option. (see page 5 for options/features).
- Door thickness – Available for 1 3 /4” to
Package Length
8.125"
Lever/Knob Design
15 - Lever
Strike Height
4-7/8"
Base Material
Brass or Bronze
Rose/Escutcheon Design
L - Rose
BAA Qualified
Yes
Origin
USA
Strike Type
ASA
Color Code
618/US14
Case Volume
2242.1875
Bolt Protection
9/16"
Package Width
6.625"
Case Height
8.75"
Screws
Combination
Package Height
4"
Package Qty
1
Case Length
20.5"
Lock Face Size
2-1/4" x 1-1/8"
Cylinder Type
SFIC Prep Less Core
Latch Backset Dim
2-3/4"
Strike Width
1-1/4"
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Fire Rated
3 Hours {A}
Grade
Grade 1
Hand
Not Handed
ANSI Function
F80 - Communicating
Latch Type
Dead Latch (Guarded)
Function
S-Communicating
Case Width
12.5"
Color
Bright Nickel Plated Clear Coated
Latch Number
8KL3DL
Package Volume
215.3125
Strike Number
8KS3
Thickness
1-3/4" - 2-1/4"
Product Overview
Communicating, Grade 1 Cylindrical Lock, 15L Design, Bright Nickel,
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall. With proven Grade 1 security, easy core interchangeability and a broad array of styles and finishes, the BEST 9K fits exactly where you need it.
The BEST 9K Series is ideal for retrofit and new construction alike.
The BEST 9K is the toughest cylindrical lock, built to deliver dependable use and superior security in a wide range of applications. What sets the 9K apart is a low-maintenance design that protects critical components from the damage that comes with every day use and abuse. That translates to a lower cost of ownership over time since the BEST 9K lock requires significantly less maintenance and lasts longer overall.
Florida Building Code and Miami-Dade County Code: 9K series – 9 /16" latch throw – Listed by Florida Building Code and Miami-Dade County at ± 75 PSF for single doors. 9K series – 3 /4" latch throw – Listed by Florida Building Code and Miami Dade County at ± 80 PSF for single doors and ± 50 PSF for double doors. “WS" option must be ordered for the lock to include a “MiamiDade County Product Control Approved" label for inspection purposes.
