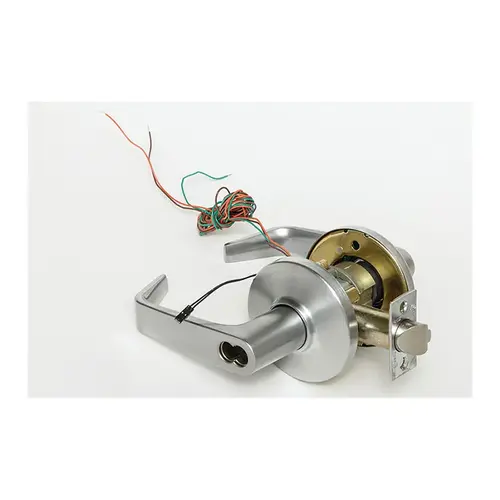

BEST 9KW37DEL15DS3626 Fail Safe FS Electric Unlock Lever 24VDC, SFIC Prep, Less Core, Angled Return Lever with D Rose (3-1/2" Diameter), S3 ASA Strike (4-7/8" x 1-1/4"), 2-3/4" Backset, Grade 1, 626/US26D Satin Chrome
Item #: 9KW37DEL15DS3626 by BEST
Brand: BEST
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Trim materials: brass or bronze Internal components: brass, bronze, zinc alloy, or corrosion-treated steel
- Door thickness: 1 3/4” – 2 1/4”
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Strike: Brass, bronze, or stainless steel; standard 2 3/4” x 1 1/8” x 3/32” or ANSI 4 7/8” x 1 1/4” x 3/32”
- Backset: 2 3/4” standard, 3 3/4” and 5” available
- Latchbolt: 9/16” (3/4” throw optional)
- Strong Retractor Springs Provide Resistance To Lever Sag
- Chassis: 2 1/6” diameter, fits 2 1/8” hole in door
- Quick And Easy Rekeying With Best Interchangeable Cores
- Ansi A156.2 Grade 1
Backset
2-3/4" Backset
Design
15D
Finish
Satin Chrome
Function
DEL-Electrically Locked
Handing
Reversible
Series
9KW Series
Strike
S3 ANSI Strike
Package Length
8.125"
Power
Hard Wired
Lever/Knob Design
15 - Lever
Strike Height
4-7/8"
Base Material
Brass or Bronze
Rose/Escutcheon Design
D - Rose
BAA Qualified
Yes
Origin
USA
Strike Type
ASA
Color Code
626/US26D
Case Volume
2242.1875
Bolt Protection
9/16"
Package Width
6.625"
Case Height
8.75"
Door Thickness
1-3/4" - 2-1/4"
Screws
Combination
Package Height
4"
Package Qty
1
Case Length
20.5"
Lock Face Size
2-1/4" x 1-1/8"
Operating Voltage
24VDC
Latch Backset Dim
2-3/4"
Strike Width
1-1/4"
Special Marks
Fire rated 3 Hours {A}
Fire Rated
3 Hours {A}
Grade
Grade 1
Hand
Not Handed
Latch Type
Dead Latch (Guarded)
Case Width
12.5"
Amp Draw
0.18
Latch Number
8KL3DL
Package Volume
215.3125
Strike Number
8KS3
Cylinder Type
7-Pin Housing, Accepts All BEST Cores
Finish Description
Satin Chrome
Lever Style
15 - Contour/Angle Return
Rose/Escutcheon Trim
D-Rose
Product Type
Electronic Cylindrical Lock
Alternate Part Number-1
241025
Voltage
12VDC
Keyed
Yes
Handle Type
Lever
Electronic
Yes
Door Handing
Non-Handed
Rose Type
D Rose - 3-1/2" convex
Substrate Type
Corrosion-Treated Steel
Lock Type
Cylindrical
Duty Level
Heavy Duty
Request to Exit
Yes
Product Overview
Electrically Locked - 2-3/4" Backset - 7-Pin Housing - Lever Style 15 (Contour with Angle Return) - D Rose (3-1/2" Convex) - Strike S3 (ANSI) - 626 Satin Chrome Finish - Less Core
BEST 9K Proven reliability. We tested BEST 9K locks to over 5 million cycles proving that the series exceeds ANSI Grade 1 requirements by over five times. Design features like a seamless one piece hardened steel alloy outside sleeve protect functionality and ensure more reliable performance throughout the product's lifespan. Long-term durability. Our low maintenance design with solid zinc hubs protect critical components from daily wear and tear for longer product life and lower overall cost of ownership. Easy retrofit. The 9K is easy to retrofit to other door preps and competitor key systems. Quick and easy installation. The 9K's pre-assembled design and simple instructions make installing the lock intuitive. Rose locking pin allows for quick door thickness adjustment. Simple to rekey. With easy core interchangeability BEST 9K locks make rekeying simple. Superior security. Manufactured with top-quality materials and designed for ease of use and attack resistance the 9K series delivers security you can trust. The 9K's vandal resistant lever includes a lost motion design allowing the lever to move 45 degree-60 degree without engaging the retractor assembly. Premium aesthetics. A low profile rose design and wide variety of trims and finishes give the BEST 9K a streamlined look compatible with modern architectural trends and appropriate for any design aesthetic. Certifications ANSI/BHMA A156.2 Series&mdashGrade 1 ANSI A117.1 Accessibility Code (ADA compliant) UL/cUL listed (3 hour) for single or double swinging doors Florida Building Code and Miami Dade County (WS option) compliant for hurricane resistance California State Fire Marshal (California Title 24) compliant California State Fire Marshal compliant for fire door This product has been approved by the California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health and Safety Code BAA & TAA compliant Illinois Accessibility Standard compliant
