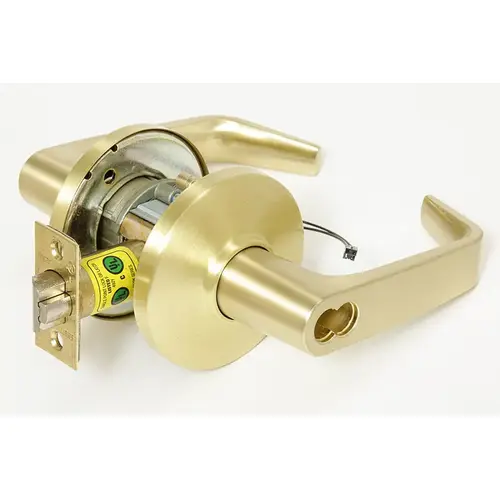

Stanley Best 9KW37DEU15CS3626RQE 9KW Electromechanical Lock 2-3/4" Backset 7 Pin Storeroom Electrically Unlocked 15 Lever and C Rose with ANSI Strike Request to Exit Satin Chrome Finish
Item #: 9KW37DEU15CS3626RQE by BEST
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
- Trim materials: brass or bronze Internal components: brass, bronze, zinc alloy, or corrosion-treated steel
- Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
- Door thickness: 1 3/4” – 2 1/4”
- Strong Retractor Springs Provide Resistance To Lever Sag
- Strike: Brass, bronze, or stainless steel; standard 2 3/4” x 1 1/8” x 3/32” or ANSI 4 7/8” x 1 1/4” x 3/32”
- Quick And Easy Rekeying With Best Interchangeable Cores
- Backset: 2 3/4” standard, 3 3/4” and 5” available
- Latchbolt: 9/16” (3/4” throw optional)
- Ansi A156.2 Grade 1
- Chassis: 2 1/6” diameter, fits 2 1/8” hole in door
Backset
2-3/4" Backset
Design
14D
Finish
Satin Chrome
Function
DEU-Electronically Unlocked
Handing
Reversible
Series
9K Series
Strike
S3 ANSI Strike
Strike Number
8KS3
Package Volume
215.3125
Latch Number
8KL3DL
Amp Draw
0.18
Case Width
12.5"
Latch Type
Dead Latch (Guarded)
Hand
Not Handed
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Fire rated 3 Hours {A}
Strike Width
1-1/4"
Latch Backset Dim
2-3/4"
Operating Voltage
24VDC
Lock Face Size
2-1/4" x 1-1/8"
Case Length
20.5"
Package Qty
1
Package Height
4"
Screws
Combination
Door Thickness
1-3/4" - 2-1/4"
Case Height
8.75"
Package Width
6.625"
Bolt Protection
9/16"
Case Volume
2242.1875
Color Code
626/US26D
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Switch Type
RX
Base Material
Brass or Bronze
Strike Height
4-7/8"
Lever/Knob Design
15 - Lever
Power
Hard Wired
Package Length
8.125"
Alternate Part Number-1
241158
Product Overview
Fail Secure, 24VDC, Cylindrical Lever Lock, 15C Design, Request to Exit, Satin Chrome
UL Listed: Listed by Underwriter's Laboratories for use on 3 Hr, A label single swinging doors (4'x10'). GYJT Builders Hardware-single point locks or latches. American National Standard: ANSI A156.2, Series 4000 Grade 1 (formerly FF-H-106C Series 161.)The 9KW series cylindrical lock has received a notice of acceptance from Miami-Dade County and is considered Miami-Dade County product control approved. "WS" option must be ordered for the lock to include a "Miami-Dade County Product Control Approved" label for inspection purposes.
The 9KW Electromechanical Series Locks provide fail-safe and fail-secure operation.
The 9KW Series electromechanical locks build on the heavy-duty performance of the 9K series. The electrified option allows integration to online access systems while preserving durability and reliability.
