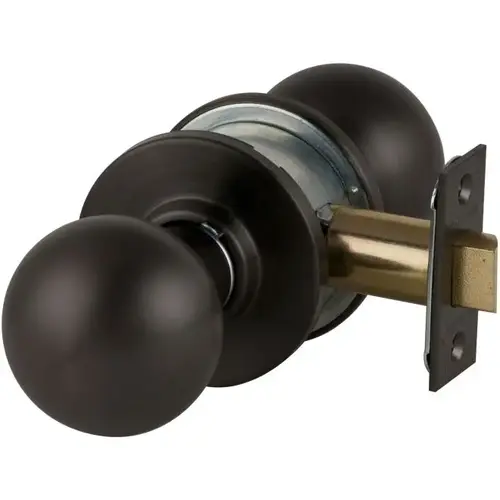

Schlage Commercial A10S ORB 613 A Series Passage Orbit Lock with 11116 Latch 10001 Strike Oil Rubbed Bronze Finish
Item #: A10S ORB 613 by Schlage Commercial
UPC #: 043156912049
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Passage - Both Knobs Always Unlocked
- ANSI/BHMA Certified A156.2
- 1-3/8" to 1-7/8" Door Range
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
Finish
Oil Rubbed Dark Bronze
Backset
2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner
Design
Orbit
Series
A Series
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Function
10-Passage
ANSI Function
F75
Bolt Protection
1/2 In.
Dust Box
Plastic
Latch Backset Dim
2-3/8 In.
Latch Number
11-068
Latch Type
Spring Latch
Lever/Knob Design
ORB - Orbit
Lock Face Size
2-1/4 In. x 1 In.
Package Qty
1
Rose/Escutcheon Design
TUL - Tulip
Strike Height
2-3/4 In.
Strike Number
10-001
Strike Type
T-Strike
Strike Width
1-1/8 In.
Thickness
1-3/4 In.
Color
Dark Oxidized Satin Bronze Oil Rubbed
Color Code
613/US10B
Type
Orbit Lock with 11116 Latch 10001
Grade
ANSI/BHMA Grade 2
Finish Description
Oil Rubbed Dark Bronze
Knob style
ORB-Orbit
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.8750
Door Thickness
1 3/8" - 1 7/8"
Knob Diameter
2.1250
ADA Approved
False
Application
Schools; Hospitals; Hotels; Commercial Buildings; Institutional Buildings; Multi-Family Properties; Homes
Warranty
3 Year Limited
Handle Type
Knob
Rose Diameter
2-9/16 Inch
Latch Throw
1/2 Inch
ADA Compliant
No
Finish Family
Dark Bronze
Standards
Meets or Exceeds A156.2 Series 4000, Grade 2 Strength and Operational Requirements; Meets Ff-H-106C; California State Reference Code
Front Material
Steel
Function Description
Latch retracted by knobs/levers at all times
Front Size
1" x 2-1/4"
Function Family
Passage/Hall/Closet
Strike Lip
1-1/8 Inch
Product Projection
2-7/8 Inch
Features
Cold-Rolled Steel, and Machined and Threaded Hubs Prevent Loosening of the Lockset by Bolting the Chassis to the Door; Heavy-Duty Cast Mounting Plate With Specially Tapped Holes, Keeps Lockset Tight on the Door
Manufacturer Parent
Allegion
Latch Corner
Square
Knob/Lever Size
2-1/8 Inch
Latch Bolt Material
Brass
Knob Style Family
Ball Knob
Sub-Series
CL_Cylindrical_Locks_schlage_commercial_88
Strike Size
1-1/8" x 2-3/4"
Product Overview
A SeriesCylindrical locks
(Formerly Title 19, California State Fire Marshal Standard)
The A Series cylindrical lock is Schlage's first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks are available in ten finishes and five trim designs allowing it to fit any new or existing environments.
Specifications: Handing:- Keyed functions are reversible. Non-keyed functions are not handed
- 1 3/8" to 1 7/8" (35 mm to 48 mm) standar
- 2 3/8" (60 mm) standard. 2 3/4" (70 mm)
- Steel. 1 1/8" x 2 1/4" square corner, beveled, for 2 3/4" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face
- Steel, zinc dichromate plated for corrosion resistance
- Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
- Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols
- T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
- Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
- Residential: 6-pin C keyway, keyed 5-pin
- Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying
- Commercial: three-year limited
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 629 - Bright stainless steel
- 630 - Satin stainless steel
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 606 - Satin brass
- 609 - Antique brass
- 625 - Bright chromium plated
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- 605 - Bright brass
- 612 - Satin bronze
- 613 - Oil rubbed bronze
- 626 - Satin chromium plated
- 643e - Aged bronze
- e = an equivalent finish to the BHMA standard.
- Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
- Meets FF-H-106C.
(Formerly Title 19, California State Fire Marshal Standard)
- All levers with a return to door of 1/2" (64mm) or less comply.
- All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
- Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
