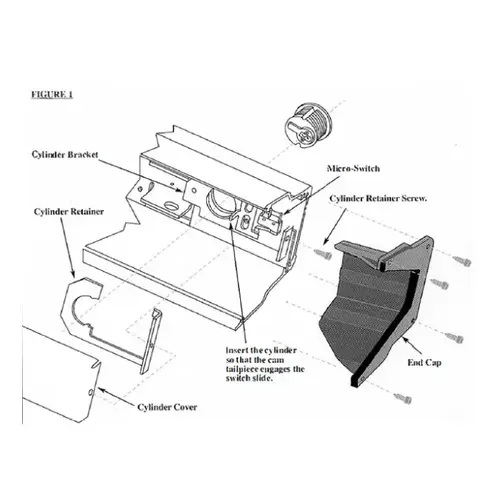

Arm-A-Dor A103-003 Alarm Sub-Assembly

Arm-A-Dor SeriesHeavy-Duty Exit Device

Take control in the fight against back door break-ins with the PRECISION Arm-A-Dor Series.

Keep occupants and inventory safe with Arm-A-Dor—PRECISION’s maximum security exit-only device. With enhanced durability features, a built-in alarm, and easy-to-operate design, Arm-A-Dor delivers maximum protection against forced entry, internal theft, and emergencies. Even in the most demanding applications, trust Arm-A-Dor for secured door applications.

Integrating features that maximize durability with a rugged design and built-in security, Arm-A-Dor delivers a complete exit security and safety solution.

With so much depending on the security of a building's rear exit, business owners simply cannot afford to install a standard exit device, alarm or deadbolt to the rear entry door. Installed by many of the nation's largest retailers, the Arm-A-Dor Series is actually three products in one:

• Locking bar protection for security from the outside
• Built-in alarm to protect against inside theft
• Panic device

This durable, pre-assembled, all-in-one exit device protects a facility's most important assets, while maximizing life safety at the same time.

PRECISION ARM-A-DOR Specifications Certifications:

• ANSI A117.1 Accessibility Code (ADA) compliant
• UL/cUL 10C 3-hour Fire Listed
• UL/cUL 305 Listed
• Florida Building Code compliant for hurricanes
• Miami-Dade County compliant for hurricanes
• California State Fire Marshal (California Title 24) compliant

Door Dimensions:

• Thickness: 1 3/4” -2 1/4” standard
• Width: 3’ – 4’
• Door jamb: 5 3/4” – 12 3/4”

Electrified options:

• Exit alarm
• Request-to-exit switch
• A/C adapter kit

Device Types:

• With alarm
• Without alarm
• Fire-rated door
• Non-fire-rated door

Finishes:

628: Satin Aluminum, Clear Anodized

Warranties:

• 5-year mechanical
• 1-year electrical

Arm-A-Dor Features and Benefits Enhanced security:

Four-point thru-bolt mounting offers greater security and protectionagainst forced entry. An integrated, audible alarm ensures that the door will only be used in an emergency.

Superior safety:

Large print, simple emergency exit instructions in English and Spanish and a wide pushbar surface make operation easy, even in the event of an emergency.

Rugged design:

Two-point solid steel deadbolt latching provides a locking bar that extends onto the door frame rather than a traditionallatch and strike, offering greater protection against intrusion and withstanding greater use and abuse.

Environmental durability:

Constructed for weather and water resistance, Arm-A-Dorperforms even in extreme conditions.

Easy installation:

Pre-assembled for 3’-4’ doors, designed non-handed, and mountedto the door via four thru-bolts, Arm-A-Dor is simple to install and retrofit.
