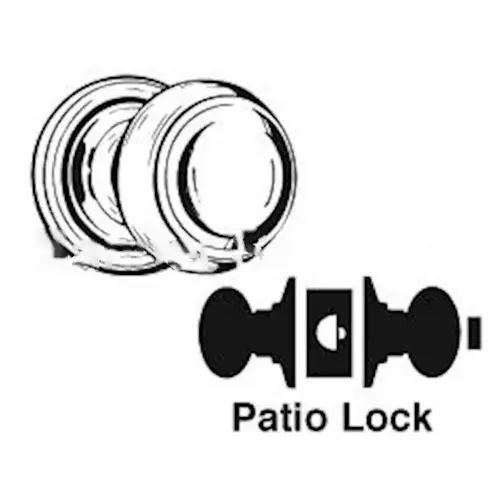

Schlage Commercial A30D GEO 609 A30D Georgian Patio Lock, Satin Brass Blackened

Item #: A30D GEO 609 by Schlage Commercial

UPC #: 043156154661

See reviewsSee reviews
See reviews summary

$389.23

/each
SAVE UP TO 38.92
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Thickness

1-3/4 In.

Strike Number

10-001

Latch Number

11-085

Color

Satin Brass Blackened Satin Relieved Clear Coated

Function

30-Patio Lock

Latch Type

Deadlatch

ANSI Function

F77S

Dust Box

Plastic

Strike Width

1-1/8 In.

Latch Backset Dim

2-3/8 In.

Lock Face Size

2-1/4 In. x 1 In.

Package Qty

1

Bolt Protection

1/2 In.

Color Code

609/US5

Strike Type

T-Strike

Rose/Escutcheon Design

GEO - Georgian

Strike Height

2-3/4 In.

Lever/Knob Design

GEO - Georgian

Finish

Satin Brass Blackened

Grade

ANSI/BHMA Grade 2

Backset

2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner

Strike

T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner

Finish Description

Antique Brass

Knob style

GEO-Georgian

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Series

A Series

Projection

2.3125

Door Thickness

1 3/8" - 1 7/8"

Knob Diameter

2.1250

ADA Approved

False

Application

Schools; Hospitals; Hotels; Commercial Buildings; Institutional Buildings; Multi-Family Properties; Homes

Warranty

3 Year Limited

Handle Type

Knob

Rose Diameter

2-9/16 Inch

Latch Throw

1/2 Inch

ADA Compliant

No

Finish Family

Antique Brass

Standards

Meets or Exceeds A156.2 Series 4000, Grade 2 Strength and Operational Requirements; Meets Ff-H-106C; California State Reference Code

Front Material

Steel

Front Size

1" x 2-1/4"

Function Family

Patio Lock

Strike Lip

1-1/8 Inch

Product Projection

2-5/16 Inch

Trim Material

Wrought Brass

Features

Cold-Rolled Steel, and Machined and Threaded Hubs Prevent Loosening of the Lockset by Bolting the Chassis to the Door; Heavy-Duty Cast Mounting Plate With Specially Tapped Holes, Keeps Lockset Tight on the Door

Manufacturer Parent

Allegion

Latch Corner

Square

Knob/Lever Size

2-1/8 Inch

Latch Bolt Material

Brass

Knob Style Family

Round Flat Knob

Sub-Series

A30D-GEO-609

Strike Size

1-1/8" x 2-3/4"

Product Overview
A SeriesCylindrical locks

The A Series cylindrical lock is Schlage's first lock and continues to exceed ANSI/BHMA Grade 2 standards, allowing it to be used in a wide range of commercial and residential applications. A Series locks are available in ten finishes and five trim designs allowing it to fit any new or existing environments.

Specifications: Handing:
  • Keyed functions are reversible. Non-keyed functions are not handed
Door thickness:
  • 1 3/8" to 1 7/8" (35 mm to 48 mm) standar
Backset:
  • 2 3/8" (60 mm) standard. 2 3/4" (70 mm)
Front:
  • Steel. 1 1/8" x 2 1/4" square corner, beveled, for 2 3/4" backset standard. Optional 1" square corner, 1" radius corner, and non-UL drive-in/round face
Lock chassis:
  • Steel, zinc dichromate plated for corrosion resistance
Latch bolt:
  • Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought brass, bronze or stainless steel. Levers are pressure cast zinc, plated to match finish symbols
Strike:
  • T-strike 1 1/8" x 2 3/4" (29 mm x 70 mm) x 1 1/8" (29 mm) lip to center with box standard
Cylinder and keys:
  • Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock
  • Residential: 6-pin C keyway, keyed 5-pin
Keying options:
  • Interchangeable core and Primus XP high security cylinders. Master keying, grand master keying, and construction keying
Warranty:
  • Commercial: three-year limited
Finishes: Georgian:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Orbit:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Plymouth:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 629 - Bright stainless steel
  • 630 - Satin stainless steel
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Tulip:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Levon:
  • 605 - Bright brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 626 - Satin chromium plated
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
Federal:
  • Meets FF-H-106C.
California state reference code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64mm) or less comply.
UL/cUL:
  • All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
