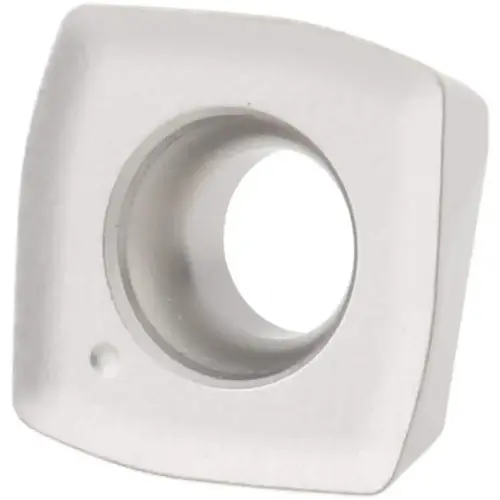

Accupro 52469822-XCP10 Milling Inserts; Insert Style: XPLT ; Insert Size: 07 ; Insert Material: Solid Carbide ; Insert Shape: Square ; Manufacturer Grade: ACS35 ; Corner Radius (Decimal Inch): 0.0197 - pack of 10
Item #: 52469822-XCP10 by Accupro
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Insert Material
Solid Carbide
Corner Radius (mm)
0.50
Vendor Drop Ship
N
Maximum Depth of Cut (Decimal Inch)
0.0315
Maximum Depth of Cut (mm)
0.80
Iso Code
XPLT070305ERSCM
Width (Decimal Inch - 4 Decimals)
0.1102
Thickness (Decimal Inch - 4 Decimals)
0.1083
Relief Angle
11.000
Thickness (mm)
2.7500
Cutter Series Compatibility
XPLT
Rake
Positive
Insert Holding Method
Screw
Coating/Finish
CVD
Width (mm - 2 Decimals)
2.80
UNSPSC Code
23291601
Insert Style
XPLT
Insert Hand
Right Hand
Manufacturer Grade
ACS35
Length (Decimal Inch - 4 Decimals)
0.2717
Inscribed Circle (mm)
6.90
Inscribed Circle (Decimal Inch)
0.2717
Corner Radius (Decimal Inch)
0.0197
Length (mm)
6.90
Insert Size Code
07
Number of Cutting Edges
4
Series
CI
Insert Shape
Square
Single or Double Sided Insert
Single
Product Overview
Milling Inserts; Insert Style: XPLT ; Insert Size: 07 ; Insert Material: Solid Carbide ; Insert Shape: Square ; Manufacturer Grade: ACS35 ; Corner Radius (Decimal Inch): 0.0197
