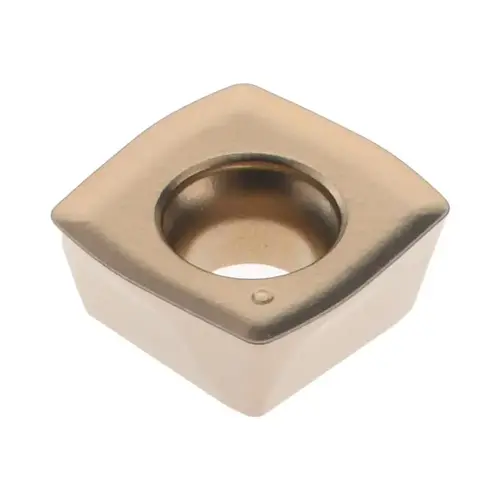

Accupro 52469889 Milling Inserts; Insert Style: XPLT ; Insert Size: 07 ; Insert Material: Solid Carbide ; Insert Shape: Square ; Manufacturer Grade: ACS35M ; Corner Radius (Decimal Inch): 0.0197 CVD

Item #: 52469889 by Accupro

See reviewsSee reviews
See reviews summary
In Stock

$27.56

/each
SAVE UP TO 2.76
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 60 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Thickness (Decimal Inch - 4 Decimals)

0.1083

Length (Decimal Inch - 4 Decimals)

0.2717

Corner Radius (Decimal Inch)

0.0197

Coating/Finish

CVD

Series

CI

Insert Material

Solid Carbide

Thickness (mm)

2.7500

Number of Cutting Edges

4

Length (mm)

6.90

Iso Code

XPLT070305ERSCM

Corner Radius (mm)

0.50

Inscribed Circle (mm)

6.90

Cutter Series Compatibility

XPLT

Single or Double Sided Insert

Single

Manufacturer Grade

ACS35M

Maximum Depth of Cut (mm)

0.80

Relief Angle

11.000

Insert Size Code

07

Insert Style

XPLT

Insert Shape

Square

Inscribed Circle (Decimal Inch)

0.2717

Insert Hand

Right Hand

Rake

Positive

Maximum Depth of Cut (Decimal Inch)

0.0315

Insert Holding Method

Screw

Width (mm - 2 Decimals)

2.80

Width (Decimal Inch - 4 Decimals)

0.1102

Vendor Drop Ship

N

UNSPSC Code

23291601

Product Overview
Milling Inserts; Insert Style: XPLT ; Insert Size: 07 ; Insert Material: Solid Carbide ; Insert Shape: Square ; Manufacturer Grade: ACS35M ; Corner Radius (Decimal Inch): 0.0197
