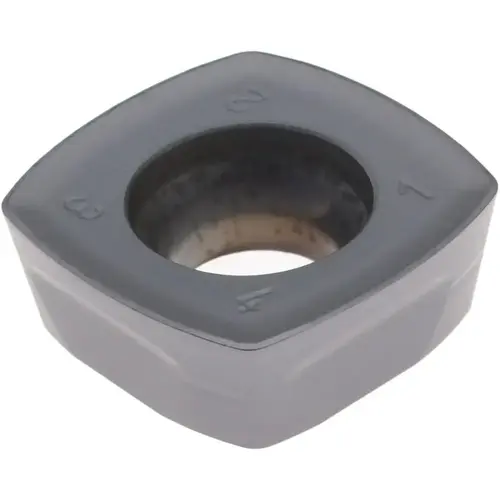

Accupro 56465214 Milling Inserts; Insert Style: XOLT ; Insert Size: 13 ; Insert Material: Solid Carbide ; Insert Shape: Square ; Manufacturer Grade: ACP35M ; Corner Radius (Decimal Inch): 0.0394 PVD
Item #: 56465214 by Accupro
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Iso Code
XOLT130410SRHCM
Corner Radius (mm)
1.00
Inscribed Circle (mm)
13.10
Cutter Series Compatibility
XOLT
Single or Double Sided Insert
Single
Manufacturer Grade
ACP35M
Maximum Depth of Cut (mm)
1.00
Relief Angle
9.000
Insert Size Code
13
Insert Style
XOLT
Insert Shape
Square
Inscribed Circle (Decimal Inch)
0.5157
Insert Hand
Right Hand
Rake
Positive
Maximum Depth of Cut (Decimal Inch)
0.0394
Insert Holding Method
Screw
Width (mm - 2 Decimals)
5.50
Width (Decimal Inch - 4 Decimals)
0.2165
Vendor Drop Ship
N
UNSPSC Code
23291601
Thickness (Decimal Inch - 4 Decimals)
0.1874
Length (Decimal Inch - 4 Decimals)
0.5157
Corner Radius (Decimal Inch)
0.0394
Coating/Finish
PVD
Series
CI
Insert Material
Solid Carbide
Thickness (mm)
4.7600
Number of Cutting Edges
4
Length (mm)
13.10
Product Overview
Milling Inserts; Insert Style: XOLT ; Insert Size: 13 ; Insert Material: Solid Carbide ; Insert Shape: Square ; Manufacturer Grade: ACP35M ; Corner Radius (Decimal Inch): 0.0394
