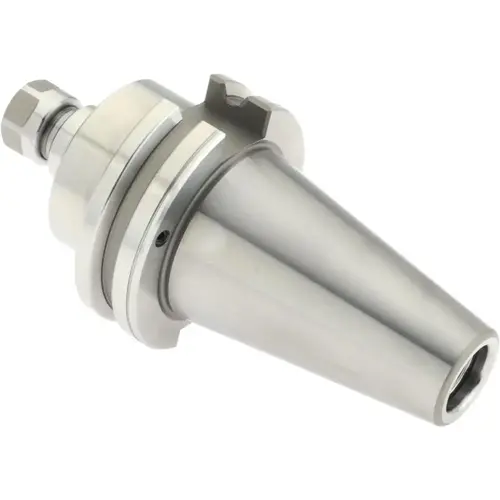

Accupro 771630 Collet Chuck: 0.48 to 6.98 mm Capacity, ER Collet, Dual Contact Taper Shank

Item #: 771630 by Accupro

See reviewsSee reviews
See reviews summary
In Stock

$303.08

/each
SAVE UP TO 30.31
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 16 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Maximum RPM

30000

Type

ER Collet

Shank Type

Dual Contact Taper

Taper Size

CAT40

Collet Series

ER11

Collet System

ER

Maximum Collet Capacity (Decimal Inch)

0.2750

Maximum Collet Capacity (mm)

6.98

Minimum Collet Capacity (Decimal Inch)

0.0190

Minimum Collet Capacity (mm)

0.48

Overall Length (Inch)

5-3/16

Product Service Code

5136

Projection (Decimal Inch)

2.5000

Shank Length (Inch)

2-11/16

Through Coolant

Yes

TIR (Decimal Inch)

0.000300

TIR (mm)

0.0070

Vendor Drop Ship

N

Balanced To Rpm

30000

Collet Nut Diameter (Decimal Inch)

0.7500

Coolant Type

Through-Spindle & DIN Flange

Projection (Inch)

2-1/2

Nose Diameter (Inch)

3/4

Hex Diameter (Inch)

3/4

Product Overview
Collet Chuck: 0.48 to 6.98 mm Capacity, ER Collet, Dual Contact Taper Shank 2.5" Projection, 0.0003" TIR, Balanced to 30,000 RPM, Through Coolant
