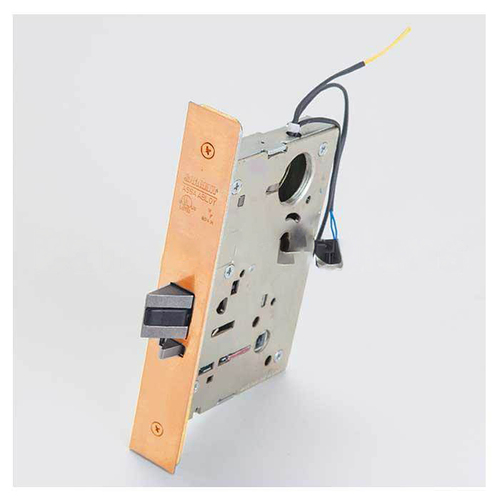

ACSI M1520M-1-8205-LNL-10-LC 8205 Entrance/Office Mortise Lever Lock - Motor Drive - Fail Secure

Item #: M1520M-1-8205-LNL-10-LC by ACSI

See reviews

$823.01 /each

SAVE UP TO 82.30

Buying in bulk

Roll over image to zoom in

ACSI M1520M-1-8205-LNL-10-LC 8205 Entrance/Office Mortise Lever Lock - Motor Drive - Fail Secure

Item #: M1520M-1-8205-LNL-10-LC by ACSI

See reviews See reviews

$823.01 /each

SAVE UP TO 82.30

Buying in bulk

Special Order*

Usually ships in 1-2 weeks

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Finish

Satin Bronze

Function

1520M-Fail Secure Control

Cylinder Type

Conventional or IC

Finish Description

Satin Bronze

Product Type

Electronic Mortise Lock

Sargent 8200 Series Office or Entry Mortise Lever Lock Modified with Fail Secure Operation (Power Unlock), Standard Control Locks Outside (Secure Side) Trim, LN Rose Design, L Lever Design, Motor Controlled, 10B Oil Rubbed Bronze Finish, Less Cylinder
1500 SeriesElectric Mortise Lock

ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.

Features:
  • UL Listed
  • California State Fire Marshall approved
  • Fail Safe (Power Lock)
  • - Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized).
  • Lockset will unlock in the event of a power failure (passage function).
  • Fail Secure (Power Unlock)
  • - Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
  • Simple user selectable fail safe/fail secure operation in motor-controlled locks
  • Continuous duty rated
  • Low power consumption
  • 24VDC, 24VAC, 12VDC, or 12VAC operation
  • When key cylinders are provided in the locks, the latch bolt may be momentarily retracted with key even though electrically locked.
  • Note: Locks that are electrically unlocked may not be locked via the key cylinder.
  • Wide variety of monitoring options are available
  • Interface with life-safety systems
Sargent:
  • Models: 8237
  • Modifications: 1520M, 1510M, 1520C, 1510C, 1500
  • Options: AE2, LM, AM, LB, SM, DPS
  • Models: 8241
  • Modifications: 1520M, 1500
  • Options: AE2, DS
  • Models: 8225
  • Modifications: 1500
  • Options: AE2, DM
Specifications: 1510 - Fail Safe (Power Lock):
  • Outside trim (or both outside and inside trim depending on the lock function) is locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of a power failure.
1520 - Fail Secure (Power Unlock):
  • Outside trim (or both outside and inside trim depending on the lock function) is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
Key Function:
  • The latch bolt may be momentarily retracted with a key even though the lockset is electrically locked.
Electrical Specifications:
  • Voltage: 12-24V AC/DC (11V - 30V)
  • Current: 250mA MAX Inrush, 10mA MAX Holding
  • Non-polarized Leads
Switch Slider Settings:
  • Yellow: Fail Secure
  • Green: Fail Safe
2-Conductor Wire Run:
  • Distance 12V/24V: 125'/250'
  • Wire Gauge: 22
  • Distance 12V/24V: 200'/400'
  • Wire Gauge: 20
  • Distance 12V/24V: 300'/600'
  • Wire Gauge: 18
  • Distance 12V/24V: 500'/1000'
  • Wire Gauge: 16
  • Distance 12V/24V: 750'/1500'
  • Wire Gauge: 14
  • Distance 12V/24V: 1250'/2500'
  • Wire Gauge: 12
  • Note: Power must be applied to the lock after a switch slider setting change.
