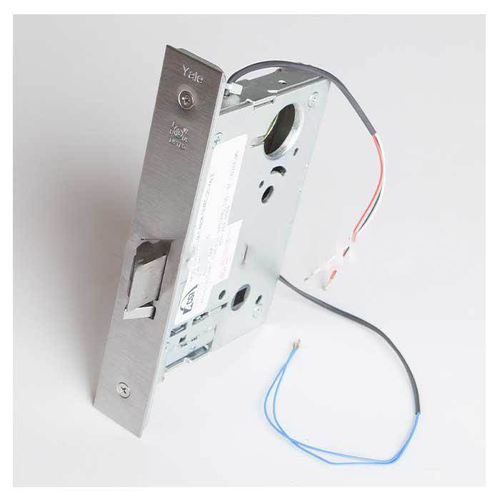

ACSI M1520M-AE-1-PBR-8808-626-LC 8808 Classroom Mortise Lever Lock - Authorized Egress - Motor Drive - Fail Secure Satin Chrome
Item #: M1520M-AE-1-PBR-8808-626-LC by ACSI
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Chrome
Function
1520M AE-Fail Secure w/Authorized Egress
Cylinder Type
Less Cylinder
Finish Description
Satin Chrome
Product Type
Electronic Mortise Lock
Series
M1520M Series
Electric Options
Request to Exit
Strike Type
Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
4-7/8" x 1-1/4"
Hub Size
3/8 Inch
Lever Size
4-5/8 Inch
Hub Material
Solid Steel
Standards
UL Listed; California State Fire Marshall Approved; ANSI/BHMA A156.13, Series 1000, Operational Grade 1; ANSI/BHMA A156.115; UL/cUL Fire Rated up to 3 Hours
Case Dimensions
4-1/8" x 1" x 6-1/16"
Function Description
Outside Trim is Unlocked When Power is Applied and Locked When Power is Removed. Lockset will Lock in the Event of a Power Failure
Front Size
8" x 1-1/4"
Function Family
Fail Secure
Strike Lip
1-1/4 Inch
Product Projection
2-3/4 Inch
Rose/Escutcheon Width
2-9/16 Inch
Rose/Escutcheon Length
2-9/16 Inch
Electrified Features
12/24V at 250mA Inrush, 10mA Holding
Features
Simple User Selectable Fail Safe/Fail Secure Operation in Motor Controlled Locks; Continuous Duty Rated; Low Power Consumption; Interface With Life Safety Systems
Voltage
12 to 24VAC/VDC
Grade
ANSI/BHMA Grade 1
Application
Classroom; Office; Utility Room Doors
Hand
Field Reversible
Backset
2-3/4 Inch
Handing
Reversible
Warranty
10 year mechanical
Color Code
626/US26D
Door Thickness
1-3/4 inch
Latch Throw
3/4 Inch
Manufacturer Parent
ACSI
Monitor Switch Rating
2A at 30VDC; 3A at 125VAC
Latchbolt Type
Stainless Steel One-Piece Anti-Friction
Sub-Series
M1520M-AE-1-PBR-8808-626-LC
Product Overview
1500 SeriesElectric Mortise Lock
ACSI Series 1500 Electric Mortise Locks provide safety and security for stairtower doors or controlled areas where both locking and latching are required. The locks are available in motor-controlled or solenoid-controlled to allow remote electric locking or unlocking while conforming to life-safety codes.
Features:- UL Listed
- California State Fire Marshall approved
- Fail Safe (Power Lock)
- - Outside trim is locked when power is applied and unlocked when power is removed (storeroom function when energized).
- Lockset will unlock in the event of a power failure (passage function).
- Fail Secure (Power Unlock)
- - Outside trim is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
- Simple user selectable fail safe/fail secure operation in motor-controlled locks
- Continuous duty rated
- Low power consumption
- 24VDC, 24VAC, 12VDC, or 12VAC operation
- When key cylinders are provided in the locks, the latch bolt may be momentarily retracted with key even though electrically locked.
- Note: Locks that are electrically unlocked may not be locked via the key cylinder.
- Wide variety of monitoring options are available
- Interface with life-safety systems
- Yale
- 1520M, 1510M, 1520C, 1510C, 1500
- AE2, LM, AM, LB, SM, DPS
- Outside trim (or both outside and inside trim depending on the lock function) is locked when power is applied and unlocked when power is removed. Lockset will unlock in the event of a power failure.
- Outside trim (or both outside and inside trim depending on the lock function) is unlocked when power is applied and locked when power is removed. Lockset will lock in the event of a power failure.
- The latch bolt may be momentarily retracted with a key even though the lockset is electrically locked.
- Voltage: 12-24V AC/DC (11V - 30V)
- Current: 250mA MAX Inrush, 10mA MAX Holding
- Non-polarized Leads
- Yellow: Fail Secure
- Green: Fail Safe
- Distance 12V/24V: 125'/250'
- Wire Gauge: 22
- Distance 12V/24V: 200'/400'
- Wire Gauge: 20
- Distance 12V/24V: 300'/600'
- Wire Gauge: 18
- Distance 12V/24V: 500'/1000'
- Wire Gauge: 16
- Distance 12V/24V: 750'/1500'
- Wire Gauge: 14
- Distance 12V/24V: 1250'/2500'
- Wire Gauge: 12
- Note: Power must be applied to the lock after a switch slider setting change.
