Adjustable End-Load Floor Mount Bottom Pivot Set

Roll over image to zoom in

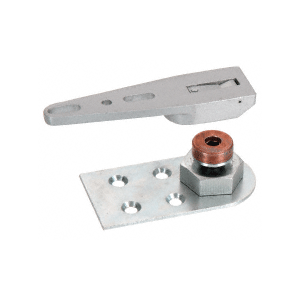

CRL CRL8010ADJ Adjustable End-Load Floor Mount Bottom Pivot Set

Item #: CRL8010ADJ by CR Laurence

2 2 reviews

In Stock $55.40 /each

SAVE UP TO 5.54

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

  • Adjustable without Removing the Door
  • Bottom Clearance Adjustable from 1/4" to 1/2" (6 to 12 mm)
  • For Use with End-Load Arm Applications

Shipping Weight

1 lb (454g)

Mounting Type

Floor

Type

End-Load Arm

Handing

Non Handed

Door Weight

200

Recommended Door Type

Aluminum Store Front

Bottom Door Clearance Adjustment (Inches)

1/4

Pivot Bottom

Yes

Bottom Door Rail Depth (Inches)

1

CRL Adjustable End-Load Floor Mount Bottom Pivot Set is intended for use with end-load applications, and can be used with bottom door rails with a minimum of 1" (25 mm) depth. It allows the door clearance to be adjusted from 1/4" to 1/2" (6 to 12 mm) without removing it. Maximum weight capacity is 200 lbs. (90.7 kg). Minimum order is one each. NOTE Cannot be used with CRL Low Profile Door Rails. DS 06/27/2016

From Manufacturer

This CRL Door-On Adjustable Bottom Pivot Set is intended for use with end-load applications, and can be used with bottom door rails with a minimum of 1" (25 mm) depth. This pivot allows the door clearance to be adjusted from 1/4" to 1/2" (6 to 12 mm) with the door installed. Maximum weight capacity is 200 lbs. (90.7 kg). Minimum order is one each.
NOTE Cannot be used with CRL Low Profile Door Rails.
