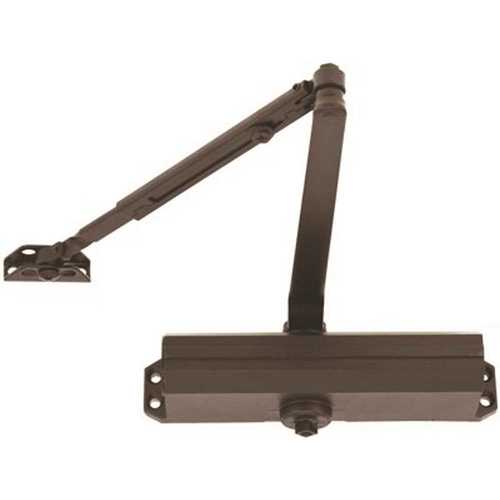

Norton 1601 690 1600 Series Surface Door Closer, Dark Bronze Painted
Item #: 1601 690 by Norton
UPC #: 049306083768
In Stock $154.43 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Exceeds 25 Million Cycles Based on Internal Cycle Testing
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Closers shall be surface mounted and shall project no more that 2-7/8" from the surface of the door.
- Closers shall be non-handed to permit installation on doors of either hand.
- Closer fluid shall contain lubricity and anti-oxidation agents.
- Non Handed for Easy Installation
- Rack and Pinion Design
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from (1 through 4) or (3 through 6).
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep and latch speed.
- Corrosion Resistant Model
- Closers shall have adjustable backcheck cushioning controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed-action closing controlled by a hex key adjustable valve.]
- Molded Plastic Cover
- [Closer body shall be enclosed in/concealed with a full molded cover.]
- [Closers shall be highly corrosion resistant and shall have all external body components of aluminum, zinc alloy or stainless steel material and all stainless steel fasteners.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( +/- 7-1/2% ) power adjustment. ** [1601] [1601BF] [1601SS].
Finish
Dark Bronze Painted
Function
Tri-Packed Non-Hold Open Arm
Grade
ANSI/BHMA Grade 1
Application
Aluminum Storefronts; Office Doors; Utility Closets; Storage Rooms
Type
Surface
Hand
Non-Handed
Color
Dark Bronze Painted
Color Code
690/US20
Case Length
12.75"
Mounting Style
Tri Mount
Arm Type
Regular Arm
Fire Rated
3 Hours {A}
Origin
USA
Closer Size
Adj. 3 to 6
BAA Qualified
Yes
Package Height
3.5"
Package Length
12.5"
Package Volume
218.75
Package Width
5"
Back Check
Adjustable
Case Height
10.5"
Case Volume
1539.5625
Case Width
11.5"
Cold Weather Fluid
Yes
Mounting Location
Push or Pull Side
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
VARIES
Spring Size
Adjustable 1-6
Mount
Push or Pull Side
Finish Description
Dark Bronze Painted
Product Type
Door Closer/Holder/Stop
Warranty
30 Year Limited Warranty
Pack Size
1
UNSPSC
30171514
Sub-Series
DC_Surface Mounted Closers_norton_1
Maximum Hold-Open
180°
Closer Hold-Open
false
Manufacturer Parent
Assa Abloy
Minimum Hold-Open
90°
Maximum Door Opening
180°
Door Size
42" (Interior); 36" (Exterior)
Door Thickness
1-3/4 inch
Handing
Non-Handed
Mounting Type
Push or Pull Side
Features
Independent Latch; Sweep and Backcheck Intensity Valves to Ensure Positive Control; Quick Adjust Slide Arm for Easy Installation and Adjustment
Mounting Hole Size
3/4" x 9-1/16"
Function Family
Non Hold Open Door Closer
Closer Pinion Diameter
5/8 Inch
Closer Piston Diameter
1-3/8 Inch
Closer Fluid
NorGlide
Closer Fluid Temperature Range
Extremely High to as Low as -40°F
Closer Clearance
1-1/2 Inch
Closer Arm Type
Regular Arm
Standards
Grade 1 - ANSI BHMA
Closer Cover
Without Cover
Product Material
Cast Aluminum
Finish Family
Dark Bronze
ADA Compliant
YES
Product Width
2-7/8 Inch
Product Length
9-3/4 Inch
Product Height
2-5/8 Inch
The 1600 Series door closers offer proven quality, performance and reliability unmatched by the competition. A staple in the industry, these ANSI/BHMA Grade 1 closers are designed for exterior or interior doors. A full complement of regular and heavy-duty arms, brackets and options make the 1600 Series closers ideal for virtually any medium traffic, commercial application.
Features:- Exceeds 25 million cycles
- Non-handed
- Rack-and-pinion design
- Cast aluminum closer body
- 2-7/8" (73mm) projection
- 1-3/8" (35mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- Tri-Style® packaging
- (regular arm, top jamb and parallel arm mounting)
- All standard arm applications allow doors to swing 180°, conditions permitting
- Staked valves
- Heavy-duty arms: Parallel Rigid, CloserPlus®, CloserPlus Spring™, and Unitrol®
- Standard, separate and independent, latch, sweep and backcheck intensity valves
- 25-year limited warranty
- Molded plastic cover - specify suffix P
- Corrosion-resistant model (non-hold open only) - specify 1601SS (not tri-packed)
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- Manufactured in an ISO 9001 and ISO 14001 certified facility
- 1601 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A) and ANSI standard A117.1
- Door Closers for Low Opening Force Applications:
- Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
- Closer bodies are constructed of a special aluminum alloy, carefully selected to accommodate interaction with steel components and operating conditions.:
- Provides a smooth constant control of the door through its full opening and closing cycle. 180° door swing can be achieved when door, frame, hardware and arm function do not limit door swing.:
- With few exceptions, all series 1600BC and series 1601 door closers are nonhanded and can be installed on either right- or left- hand swing doors.
- Pinion shaft extends vertically through the closer body in both directions.
- Some options (such as Parallel Rigid hold open arms) will require that the hand of the closer be specified.
- 1600BC/1601 closers come with screws, brackets & soffit plate to allow for regular, top jamb, & parallel arm installations.:
- Allows adjustment of door speed from the door's full open position down to approximately 10° from the closed position.
- Allows adjustment of door speed from approximately 10° down to the door’s fully closed position.
- Provides control of the door in the opening cycle, beginning at approximately 75° of door opening.
- It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.
- These closers carry a limited 25-year warranty against defects and a limited lifetime warranty on the aluminum housing.
- NorGlide® door closer fluid is a specially formulated hydraulic fluid that contains lubricity and anti oxidation agents that provide optimum performance and efficiency.
- This fluid complements the interaction of the door closer's aluminum housing with its steel and zinc components, while maintaining stable viscosity to allow the door closer to perform in temperatures ranging from extremely high to as low as -40° F.
- Available in power sizes 3 or 4. Outlined in ANSI specification A156.4. Spring power is not adjustable.
- Adjustable through the power range of sizes 1 through 6 to comply with the opening force requirements as outlined in the Americans with Disabilities Act (A.D.A.) and ANSI A117.1 for interior doors.
- Outlined in ANSI specification A156.4.
