Norton Closers UNI7500H-36 x 689 Adjustable Size 1-6 Aluminum Cast Aluminum Body Door Closer
Item #: UNI7500H-36 x 689 by Norton Door Controls
UPC #: 049306085328
In Stock $788.76 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Builders Hardware Product Type
Door Closer
General Material
Aluminum
Product Width (in.)
13.625
Hardware Finish Family
Chrome
Maximum Door Range (deg.)
120
Commercial/Residential
Commercial
Certifications and Listings
ADA Compliant, cUL Listed, UL Listed
Product Height (in.)
3.5
Mounting
Parallel Arm
Product Depth (in.)
2.125
Warranty
25 Year limited warranty
General Color Family
Metallics
Color
Satin Chrome
Pack Size
1
UNSPSC
30171514
Mounting Type
Parallel Arm (Push Side)
Grade
ANSI/BHMA Grade 1
Application
Classrooms; Offices; Main Entrance Doors; Hospitals; High Use High Abuse Doors
Hand
Non-Handed
Handing
Non-Handed
Spring Size
1-6
Function
Bi-Pack Hold Open
Door Thickness
1-3/4 inch
Mount
Parallel Arm (Push Side)
Door Size
3'
Maximum Door Opening
180°
Finish Description
Aluminum Painted
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Cast Aluminum
Closer Cover
Plastic Cover
Standards
Grade 1 - ANSI/BHMA A156.4
Closer Arm Extension
10-1/8 Inch

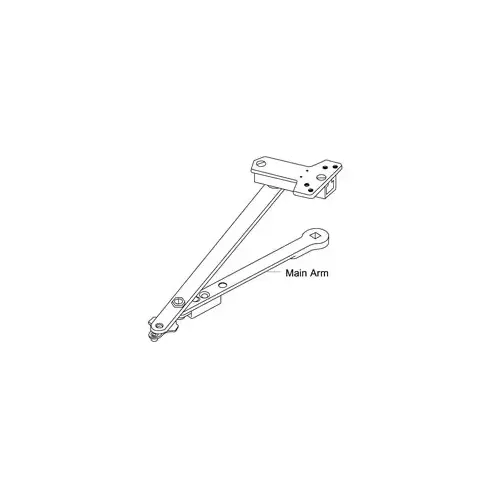

Closer Arm Type
Unitrol Arm
Closer Fluid Temperature Range
Extremely High to as Low as -40°F
Closer Fluid
NorGlide
Closer Piston Diameter
1-1/2 Inch
Closer Pinion Diameter
5/8 Inch
Function Family
Hold Open Door Closer
Mounting Hole Size
2-3/8" x 6-3/4"
Templating
Full Size
Features
Backcheck Positioning Valve; All Standard Arm Applications Allow Doors To Swing 180°
Product Type
Door Closer/Holder/Stop
Minimum Hold-Open
85°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Maximum Hold-Open
110°
Sub-Series
UNI7500H-689-3FT
The 7500 Series Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability. This unit had a Unitrol Arm.
- Non handed
- Adjustable spring size 1-6
- Grade 1 certified
- Exceeds 25 million cycles
- Unitrol arm
