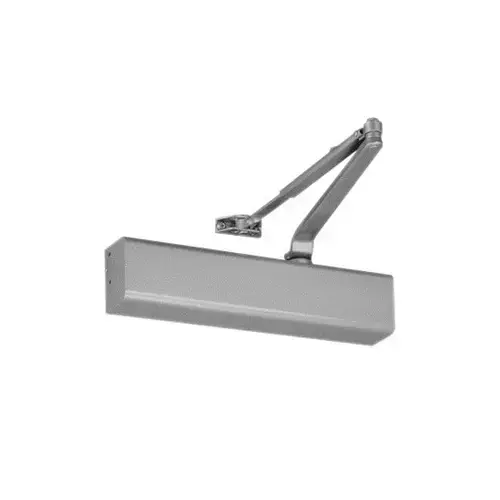

Norton 8501 689 8000 Series Surface Door Closer, Aluminum Painted
Item #: 8501 689 by Norton
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Closers for interior and exterior doors shall be full rack-and-pinion type with cast aluminum alloy shell.
- Exceeds 25 Million Cycles
- Non Handed
- Closers shall be surface mounted and shall project no more than 2-1/8" from the surface of the door with standard cover.
- Closers shall be non-handed to permit installation on doors of either hand. Closer fluid shall contain lubricity and anti-oxidation agents.
- Staked Valves
- Rack and Pinion Design
- Closer fluid shall maintain stable viscosity to allow door closer to perform in temperatures ranging from extremely high to as low as -40°F.
- Closers shall have multi-size spring power adjustment to permit setting of spring from size 1 through size 6.
- Standard, Separate and Independent, Latch, Sweep and Backcheck Intensity Valves
- Closers shall have two non-critical valves, hex key adjusted, to independently regulate sweep speed and latch speed.
- Closers shall have adjustable backcheck intensity controlled by a hex key adjusted valve.
- [Closers shall have adjustable delayed action closing controlled by a hex key adjustable valve.]
- Regular arm and top jamb closers shall have a non-hold open shoe permitting 15% ( + or – 7-1/2% ) power adjustment.
Finish
Aluminum
Function
Tri-Packed Non-Hold Open Arm
Series
8501 Series
Grade
ANSI/BHMA Grade 1
Application
Offices; Banks; Retail Malls; Hotels; Health Care; Clinics
Cover
Plastic
Type
Surface
Hand
Non-Handed
Color
Aluminum Painted
Color Code
689/US28
Case Length
15.75"
Mounting Style
Tri Mount
Arm Type
Regular Arm
Fire Rated
3 Hours {A}
Origin
USA
Closer Size
Adj. 1 to 6
BAA Qualified
Yes
Package Height
3.5"
Package Length
15.25"
Package Volume
333.59375
Package Width
6.25"
Back Check
Adjustable
Case Height
7.75"
Case Volume
1556.296875
Case Width
12.75"
Cold Weather Fluid
Yes
Mounting Location
Push or Pull Side
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
VARIES
Spring Size
1-6
Mount
Push or Pull Side
Finish Description
Aluminum Painted
Product Type
Door Closer/Holder/Stop
Product Height
2-7/8 Inch
Product Length
13 Inch
Product Width
2-1/8 Inch
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Cast Aluminum
Closer Cover
Full Plastic Cover
Standards
Grade 1 - ANSI/BHMA A156.4; UL listed; UL10c
Closer Arm Extension
2-1/8 Inch
Closer Arm Type
Regular Arm
Closer Fluid Temperature Range
Extremely High to as Low as -40° F
Closer Fluid
NorGlide (R) Closer Fluid
Closer Piston Diameter
1-1/4 Inch
Closer Pinion Diameter
5/8 Inch
Function Family
Non Hold Open Door Closer
Mounting Hole Size
3/4" x 12"
Templating
Full Size Template
Fastener Type
Self Drilling Screws
Features
Exceeds 25 Million Cycles; Rack and Pinion Design; Staked Valves
Mounting Type
Push or Pull Side
Handing
Non-Handed
Warranty
30 Year Limited Warranty
Door Thickness
1-3/4 inch
Door Size
32" to 54" (Interior); 30" to 48" (Exterior)
Maximum Door Opening
180°
Manufacturer Parent
Assa Abloy
Closer Hold-Open
false
Sub-Series
DC_Surface Mounted Closers_norton_39
Aluminium Bottle Contents
Swinging
ProductType
Manual
Door Series
8500/8600
Product Overview
8000 SeriesArchitectural Door Closer
Multi-sized surface closer offering a complete range of arms and a sleek, minimal design suited for moderate- to hightraffic, architectural openings.
Features:- Exceeds 25 million cycles
- Adjustable spring sizes 1 through 6
- Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
- Non-handed
- Staked valves
- Cast aluminum closer body
- Rack and pinion design
- 1-1/4" (32mm) diameter piston
- 5/8" (16mm) diameter pinion journals
- 2-1/8" (54mm) projection (standard covers)
- All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
- Full size template
- Standard, separate and independent, latch, sweep and back check intensity valves
- Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)
- Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
- Slide Tracks: push or pull side mounting
- 25-year limited warranty
- Lead lined metal cover - suffix MLL
- Metal, architectural plastic or architectural metal covers (8501 only)
- Delayed action
- ANSI/BHMA A156.4, Grade 1 certified
- UL / cUL listed for use on fire rated doors
- UL10C listed for positive pressure fire test
- 8301 and 8501 door closers are designed to comply with requirements for the Americans with Disabilities Act (A.D.A)and ANSI standard A117.1
- This product is manufactured in an ISO 9001, ISO 14001 facility
- Door Closers for Low Opening Force Applications:
- Door closers installed in openings required to meet the requirements of the Americans With Disabilities Act or ANSI/BHMA Standard A117.1, when adjusted to meet those requirements, may not provide adequate closing power to dependably close and latch the door based on opening or site conditions.
