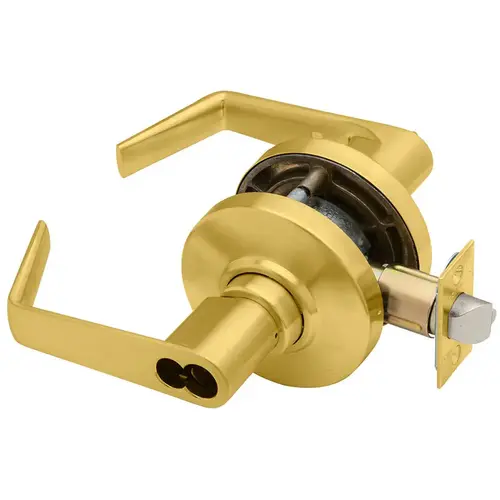

Schlage Commercial AL70JD SAT 605 AL Series Classroom Large Format Less Core Saturn Lock with 11096 Latch 10025 Strike Bright Brass Finish
Item #: AL70JD SAT 605 by Schlage Commercial
Brand: Schlage Commercial
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Classroom - Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked
- ANSI/BHMA Certified A156.2
- Handing: Non-handed.
- 1-3/8" to 1-7/8" Door Range
- UL Listed for 3 Hour Fire Door
- Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
- Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
- Commercial Grade 2
- Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
- Lock Chassis: Steel, zinc dichromated for corrosion resistance
- Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
- Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
- Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
- Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
- Warranty: Three-year limited.
Backset
2-3/4" Backset
Finish
Bright Brass
Function
Classroom
Strike
ANSI Strike
Design
Saturn
Series
AL Series
Grade
Grade 2
Color Code
605/US3
Case Length
16.375"
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75"
Package Length
9.5"
Package Width
8.25"
Case Height
10"
Case Width
14.625"
Package Qty
1
Base Material
Brass
Handing
Reversible
Product Overview
Classroom Function, Grade 2, Cylindrical Lock, SAT Lever, LFIC Prep, Bright Brass
The Schlage AL Series is a Grade 2 Lock for offering dependable performance for high traffic commercial applications. AL Locks are designed to deliver ADA Compliant accessibility and constant, reliable performance. The AL Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas.
Ideal for buildings with medium to high traffic flow, such as banks, hotel guest areas, interior office doors and retail spaces.
Featuring a Grade 2 ANSI rating, the AL Series delivers ADA compliant accessibility and reliable performance.
