AL Series Classroom Small Format Less Core Jupiter Lock with 11096 Latch 10025 Strike Bright Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

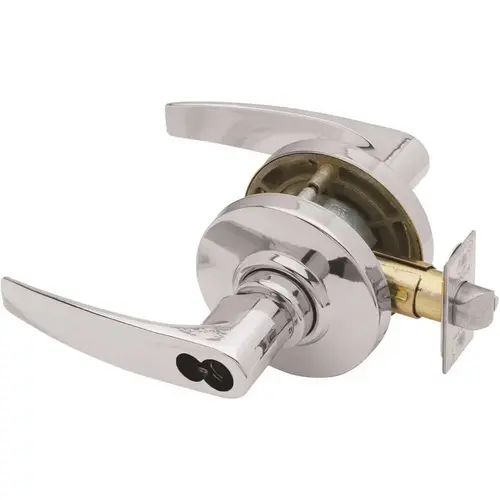

Schlage AL70BD JUP 625 AL Series Classroom Small Format Less Core Jupiter Lock with 11096 Latch 10025 Strike Bright Chrome Finish

Item #: AL70BD JUP 625 by Schlage Commercial

UPC #: 840067601402

See reviewsSee reviews
In Stock

$262.18

/each
SAVE UP TO 26.22

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Classroom - Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked
  • Handing: Non-handed.
  • ANSI/BHMA Certified A156.2
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • 1-3/8" to 1-7/8" Door Range
  • UL Listed for 3 Hour Fire Door
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Commercial Grade 2
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Function

70-Classroom Lock

Finish

Bright Chrome

Backset

2-3/4" Backset

Strike

ASA Strike

Design

Jupiter

Series

AL Series

Thickness

1-3/8 In. - 1-7/8 In.

Strike Number

10-025

Package Volume

372.28125

Latch Number

11-096

Case Width

14.625"

Latch Type

Dead Latch (Guarded)

ANSI Function

F84 - Classroom

Hand

Not Handed

Grade

Grade 2

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Lock Face Size

2-1/4" x 1-1/8"

Case Length

16.375"

Package Qty

1

Package Height

4.75"

Screws

Combination

Case Height

10"

Package Width

8.25"

Case Volume

2394.84375

Color Code

625/US26

Strike Type

ASA

Origin

Mexico

BAA Qualified

Yes

Rose/Escutcheon Design

3-7/16 In. Diameter

Base Material

Brass or Bronze

Strike Height

4-7/8"

Lever/Knob Design

JUP - Jupiter

Package Length

9.5"

Warranty

3 Years

Pack Size

1

Certifications and Listings

ADA Compliant, ANSI Certified

Door Handing

Universal/Reversible

Door Locks & Knobs Product Type

Classroom Levers

General Material

Brass

Hardware Finish Family

Chrome

Product Depth (in.)

9.5

Product Height (in.)

4.75

Product Width (in.)

8.25

Security/ANSI Grade

ANSI Grade 2 (Better)

Lock Type

Unkeyed

UNSPSC

46171500

Product Overview

The Schlage AL Series is a Grade 2 Lock for offering dependable performance for high traffic commercial applications. AL Locks are designed to deliver ADA Compliant accessibility and constant, reliable performance. The AL Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas.

  • Schlage AL series
  • Classroom function
  • Bright chrome finish
  • Cylindrical lock
  • Grade 2
  • Straight lever
