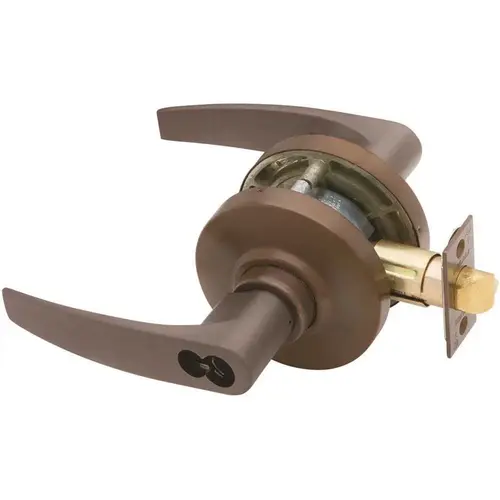

Schlage AL70BD JUP 613 AL Series Classroom Small Format Less Core Jupiter Lock with 11096 Latch 10025 Strike Oil Rubbed Bronze Finish
Item #: AL70BD JUP 613 by Schlage Commercial
UPC #: 840067601396
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Classroom - Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked
- Handing: Non-handed.
- ANSI/BHMA Certified A156.2
- Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
- Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
- 1-3/8" to 1-7/8" Door Range
- UL Listed for 3 Hour Fire Door
- Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
- Lock Chassis: Steel, zinc dichromated for corrosion resistance
- Commercial Grade 2
- Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
- Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
- Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
- Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
- Warranty: Three-year limited.
Function
Classroom
Finish
Dark Oxidized Satin Bronze Oil Rubbed
Design
Jupiter
Strike
ASA Strike
Backset
2-3/4" Backset
Grade
Grade 2
Color Code
613/US10B
Case Length
16.375"
Origin
Mexico
BAA Qualified
Yes
Package Height
4.75"
Package Length
9.5"
Package Width
8.25"
Case Height
10"
Case Width
14.625"
Package Qty
1
Base Material
Bronze
Warranty
3 Years
Pack Size
1
Certifications and Listings
ADA Compliant, ANSI Certified
Door Handing
Universal/Reversible
Door Locks & Knobs Product Type
Classroom Levers
General Material
Brass
Hardware Finish Family
Bronze
Product Depth (in.)
9.5
Product Height (in.)
4.75
Product Width (in.)
8.25
Security/ANSI Grade
ANSI Grade 2 (Better)
Lock Type
Unkeyed
UNSPSC
46171500
The Schlage AL Series is a Grade 2 Lock for offering dependable performance for high traffic commercial applications. AL Locks are designed to deliver ADA Compliant accessibility and constant, reliable performance. The AL Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas.
- Schlage AL series
- Classroom function
- Oil rubbed bronze finish
- Cylindrical lock
- Grade 2
- Straight lever
