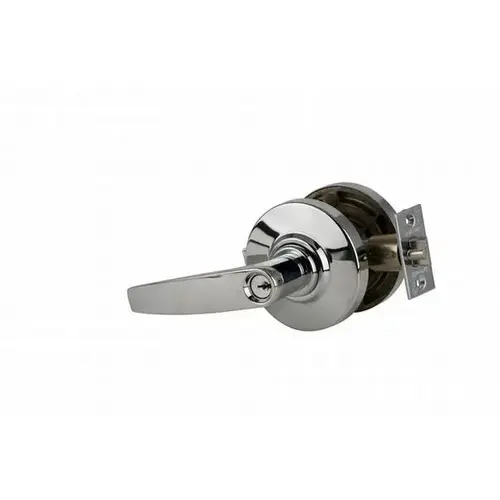

AL53PD Jupiter Entrance Lock, Bright Polished Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial AL53PD JUP 625 AL53PD Jupiter Entrance Lock, Bright Polished Chrome

Item #: AL53PD JUP 625 by Schlage Commercial

UPC #: 043156154432

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Entry - Turn/Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Turn
  • Handing: Non-handed.
  • ANSI/BHMA Certified A156.2
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • 1-3/8" to 1-7/8" Door Range
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • UL Listed for 3 Hour Fire Door
  • Commercial Grade 2
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Function

53-Entrance

Finish

Bright Polished Chrome

Backset

2-3/4", 1-1/8" x 2-1/4", Square Corner

Strike

ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner

Design

Jupiter

Series

AL Series

Grade

ANSI/BHMA Grade 2

Color Code

625/US26

Case Length

16.375"

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75"

Package Length

9.5"

Package Width

8.25"

Case Height

10"

Case Width

14.625"

Package Qty

1

Special Marks

Conventional cylinder

Base Material

Brass or Bronze

Keyway

Schlage C

Cylinder Type

P-6 Pin Conventional (Keyed 5)

Finish Description

Bright Polished Chrome

Lever Style

JUP-Jupiter

Keyblank Grouping

SCHL-C-6-1

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

2.5000

Lever Length

4.2500

Door Thickness

1 3/8" - 1 7/8"

Bore Size

2.1250

ADA Approved

True

Door Range

1 3/8 to 1 7/8

Keying Charges

CCAM

Product Material

Zinc; wrought brass or bronze

Strike Name

ANSI 1-1/4 x 4-7/8

Latch Number

11-096

Strike Number

10-025

Box Length

9.5000

Box Width

8.0000

Box Height

4.7500

Application

Interior Office Doors; Banks; Retail Spaces; Hotel Guest Areas

Warranty

3 Year Limited

Handle Type

Lever

Rose Diameter

3-7/16 Inch

Latch Throw

1/2 Inch

ANSI Function

F109

Latch Type

Deadlatch

Strike Type

ANSI Strike

ADA Compliant

YES

Finish Family

Polished Chrome

Strike Size

1-1/4" x 4-7/8"

Cylinder Material

Brass

Door Cross Bore

2.125 Inch

Standards

ANSI/BHMA A156.2 Series 4000, Grade 2; A117.1 Accessibility Code; Florida Building Code TAS 201, 202, 203 and ANSI-ASTM E330; Federal FF-H-106C; BAA Compliant

Cylinder Type Used

Conventional

Front Material

Steel

Function Description

Pushing and turning button on inside locks outside knob/lever requiring use of a key until button is manually unlocked.

Front Size

1-1/8" x 2-1/4"

Function Family

Entry/Entrance/Office

Strike Lip

1-3/16 Inch

Product Projection

2-1/2 Inch

Trim Material

Pressure Cast Zinc (Lever)

Features

Constant, Reliable Performance; Best for Buildings with Medium to High Traffic Flow

Manufacturer Parent

Allegion

Lever Length-Inches

4.25 Inch

Latch Corner

Square

Knob/Lever Size

4-1/4 Inch

Latch Bolt Material

Brass

Box Dimensions (L x W x H)

9.5x8x4.75"

Lever Style Family

Straight Lever

Sub-Series

CL_Cylindrical_Locks_schlage_commercial_67

Product Overview
Entrance Lock, Keyed function,"C" Keyway, 2-3/4" Backset Square Corner Deadlatch, 4-7/8" ANSI Strike. 625 Bright Chrome
AL SeriesCylindrical locks

The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.

Specifications: Handing:
  • Non-handed
Door thickness:
  • 1 3/8" to 1 7/8" (35 mm to 48 mm) standard
Backset:
  • 2 3/4" (70 mm) standard. 2 3/8" (60 mm)
Front:
  • Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard
Lock chassis:
  • Steel, zinc dichromated for corrosion resistance
Latch bolt:
  • Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike:
  • ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.
Cylinder and keys:
  • 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying options:
  • Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
  • Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 619 - Satin nickel
  • 622 - Matte black
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 626AM - Anti-microbial coating
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
  • Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
  • Meets A117.1 Accessibility Code.
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64 mm) or less comply.
UL / cUL:
  • All locks listed for A label single doors, 4' x 8'.
  • Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

This product contains 1 cylinders per lock and is typically keyed alike in quantities of 1.
