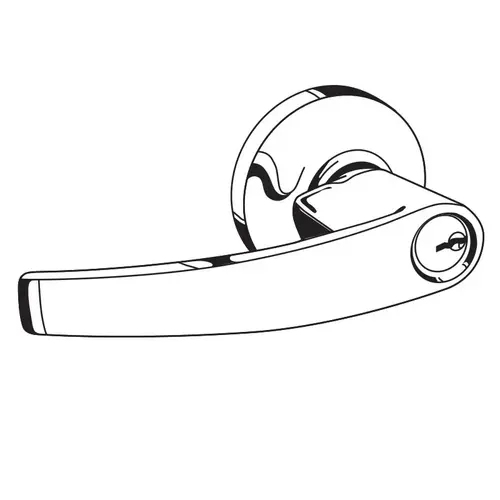

KEYED ENTRY LEVER AL53-NEP-609 11-096, 1, Satin Brass Blackened Satin Relieved Clear Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Schlage Commercial AL53PD NEP 609 KEYED ENTRY LEVER AL53-NEP-609 11-096, 1, Satin Brass Blackened Satin Relieved Clear Coated

Item #: AL53PD NEP 609 by Schlage Commercial

Brand: Schlage Commercial

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$526.35

/each
SAVE UP TO 52.64
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available

Finish: Satin Brass Blackened Satin Relieved Clear Coated

Design: Neptune

Neptune
Omega
Saturn
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Entry - Turn/Push Button Locks Outside Lever Until Unlocked with Key or Rotating Inside Turn
  • Handing: Non-handed.
  • ANSI/BHMA Certified A156.2
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • 1-3/8" to 1-7/8" Door Range
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • UL Listed for 3 Hour Fire Door
  • Commercial Grade 2
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Function

53-Entrance

Finish

Antique Brass

Backset

2-3/4" Backset

Strike

ASA Strike

Design

Neptune

Series

AL Series

Thickness

1-3/8 In. - 1-7/8 In.

Strike Number

10-025

Package Volume

372.28125

Latch Number

11-096

Color

Satin Brass Blackened Satin Relieved Clear Coated

Case Width

14.625"

Latch Type

Dead Latch (Guarded)

ANSI Function

F109 - Entry/Office

Hand

Not Handed

Grade

Grade 2

Special Marks

Conventional cylinder

Key(s)

Cut

Strike Width

1-1/4"

Latch Backset Dim

2-3/4"

Cylinder Type

Conventional Cylinder

Lock Face Size

2-1/4" x 1-1/8"

Case Length

16.375"

Package Qty

1

Package Height

4.75"

Screws

Combination

Keying

Keyed Different

Case Height

10"

Package Width

8.25"

Number of Pins

6

Case Volume

2394.84375

Color Code

609/US5

Strike Type

ASA

Origin

Mexico

BAA Qualified

Yes

Rose/Escutcheon Design

3-7/16 In. Diameter

Base Material

Brass

Keyway

S123

Strike Height

4-7/8"

Lever/Knob Design

NEP - Neptune

Package Length

9.5"

Product Type

Cylindrical Lock

ADA Approved

False

Product Overview
KEYED ENTRY LEVER AL53-NEP-609 11-096, 1
AL SeriesCylindrical locks

The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.

Specifications: Handing:
  • Non-handed
Door thickness:
  • 1 3/8" to 1 7/8" (35 mm to 48 mm) standard
Backset:
  • 2 3/4" (70 mm) standard. 2 3/8" (60 mm)
Front:
  • Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard
Lock chassis:
  • Steel, zinc dichromated for corrosion resistance
Latch bolt:
  • Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike:
  • ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.
Cylinder and keys:
  • 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying options:
  • Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
  • Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 619 - Satin nickel
  • 622 - Matte black
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 626AM - Anti-microbial coating
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
  • Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
  • Meets A117.1 Accessibility Code.
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64 mm) or less comply.
UL / cUL:
  • All locks listed for A label single doors, 4' x 8'.
  • Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
