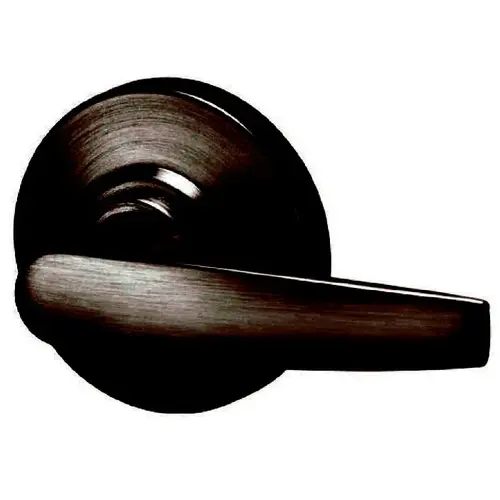

Schlage Commercial AL10S JUP 643E AL10S Jupiter Passage Lock, Aged Bronze

Item #: AL10S JUP 643E by Schlage Commercial

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Passage - Both Levers Always Unlocked
  • Handing: Non-handed.
  • ANSI/BHMA Certified A156.2
  • Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
  • Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
  • 1-3/8" to 1-7/8" Door Range
  • Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
  • UL Listed for 3 Hour Fire Door
  • Commercial Grade 2
  • Lock Chassis: Steel, zinc dichromated for corrosion resistance
  • Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
  • Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
  • Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
  • Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
  • Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
  • Warranty: Three-year limited.

Function

10-Passage

Finish

Aged Bronze

Backset

2-3/4" Backset

Strike

ASA Strike

Design

Jupiter

Series

AL Series

Grade

Grade 2

Color Code

643E/US10B

Case Length

16.375"

Origin

Mexico

BAA Qualified

Yes

Package Height

4.75"

Package Length

9.5"

Package Width

8.25"

Case Height

10"

Case Width

14.625"

Package Qty

1

Base Material

Steel

Product Type

Cylindrical Lock

ADA Approved

False

Finish Description

Aged Bronze

ANSI Function

F75

ADA Compliant

YES

Finish Family

Antique Bronze

Lever Style

JUP-Jupiter

Rose/Escutcheon Trim

Round Rose

Product Material

Zinc; wrought brass or bronze

Function Description

Latch retracted by knobs/levers at all times

Function Family

Passage/Hall/Closet

Product Projection

2.50 Inch

Manufacturer Parent

Allegion

Lever Style Family

Straight Lever

Product Overview
JUPITER PASSAGE 643E AL10-JUP-643E 11-11
AL SeriesCylindrical locks

The AL Series is designed to offer reliable security in medium- to high-traffic areas. It is designed for interior office doors, banks, retail spaces, hotel guest areas and many other applications. With a Grade 2 ANSI/BHMA rating, four lever styles and ten finishes, the AL Series fits any interior or exterior need.

Specifications: Handing:
  • Non-handed
Door thickness:
  • 1 3/8" to 1 7/8" (35 mm to 48 mm) standard
Backset:
  • 2 3/4" (70 mm) standard. 2 3/8" (60 mm)
Front:
  • Steel. 2 1/4" x 1 1/8" square corner, beveled, for 2 3/4" backset standard
Lock chassis:
  • Steel, zinc dichromated for corrosion resistance
Latch bolt:
  • Brass, chrome plated, 1/2" throw, deadlocking on keyed and exterior functions
Exposed trim:
  • Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike:
  • ANSI curved lip strike 4 7/8" x 1 1/4" x 1 1/4" lip to center standard.
Cylinder and keys:
  • 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying options:
  • Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty:
  • Three-year limited
Finishes:
  • 605 - Bright brass
  • 606 - Satin brass
  • 609 - Antique brass
  • 612 - Satin bronze
  • 613 - Oil rubbed bronze
  • 619 - Satin nickel
  • 622 - Matte black
  • 625 - Bright chromium plated
  • 626 - Satin chromium plated
  • 626AM - Anti-microbial coating
  • 643e - Aged bronze
  • e = an equivalent finish to the BHMA standard.
  • Jupiter, Neptune, and Omega not available in 609 finish for FSIC and SFIC.
Certifications: ANSI:
  • Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.
  • Meets A117.1 Accessibility Code.
Federal:
  • Meets FF-H-106C
California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
  • All levers with a return to door of 1/2" (64 mm) or less comply.
UL / cUL:
  • All locks listed for A label single doors, 4' x 8'.
  • Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify Primus 20-500 Series cylinder.
ADA compliant:
  • Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.
